[Pre-Order] Tonish TKL

Name: [Pre-Order] Tonish TKL
Brand: CC
Price: 319.0 USD
Availability: OutOfStock

$319.00

Layout

WKL

Color

Retro White & Warm Brown

Moon Silver & Ocean Blue

Industrial Yellow & Dark Gray

True Red & Retro White

Ink Green & Radiant Gold

Badge and Weight Color

Sandblast Brass

Stonewashed PVD Stainless Steel

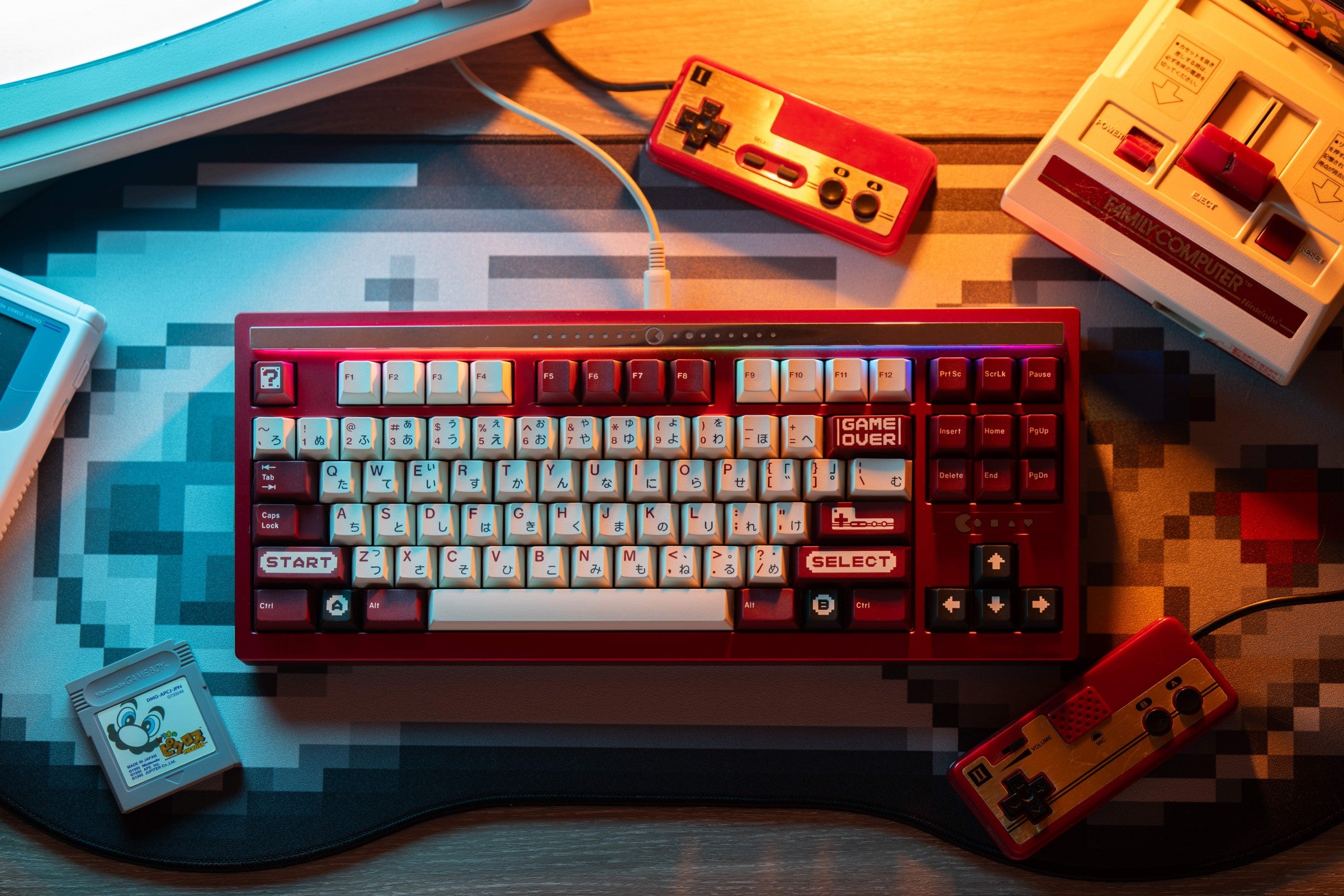

Tonish TKL — Retro Soul, Modern Engineering

Design Philosophy
Tonish TKL is inspired by two icons of the 1980s: the IBM Model F keyboard and the cultural phenomenon of Pac-Man. The design blends retro charm with playful creativity, delivering a board that is not only functional but also full of character.

Highlights

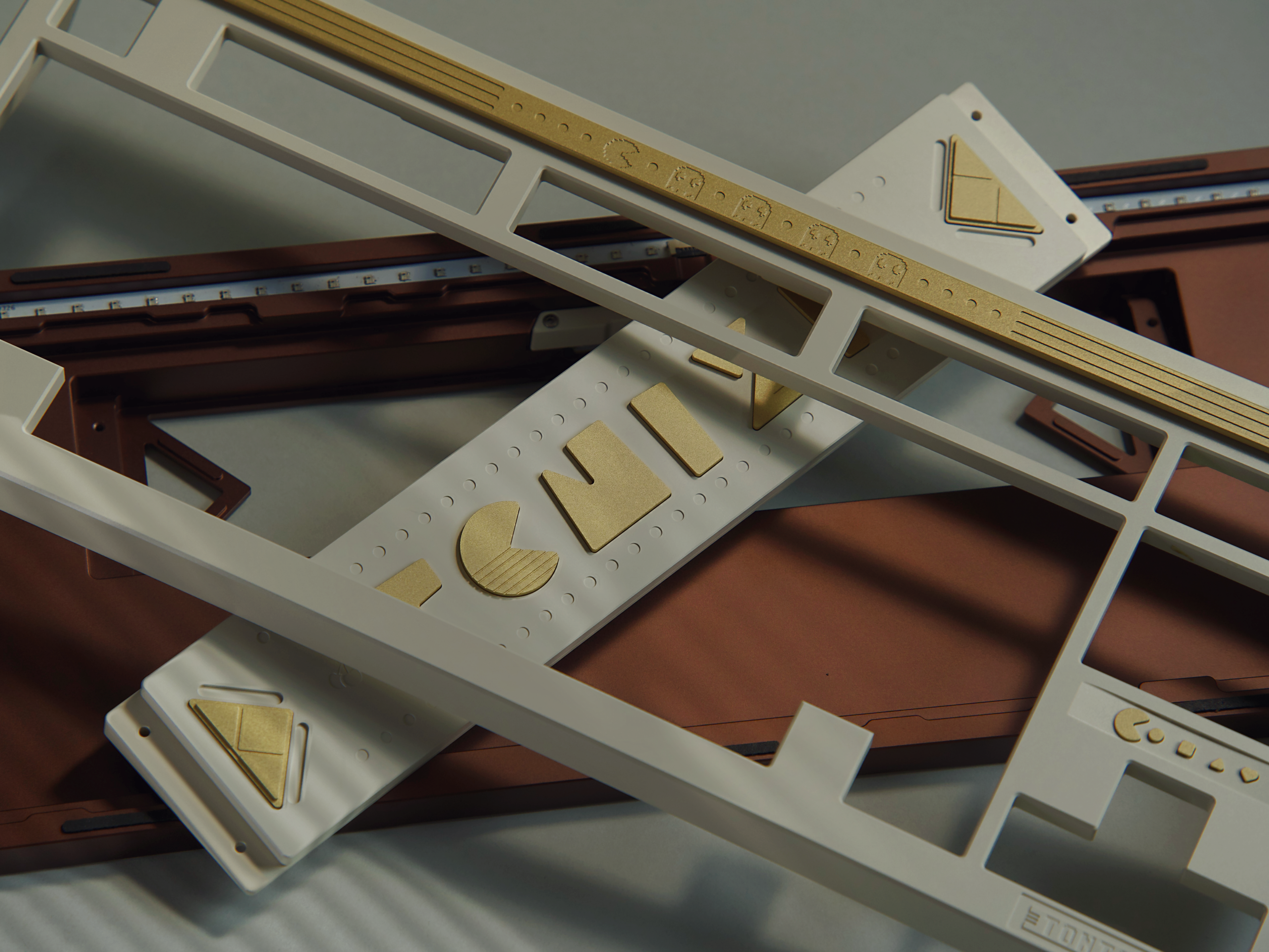

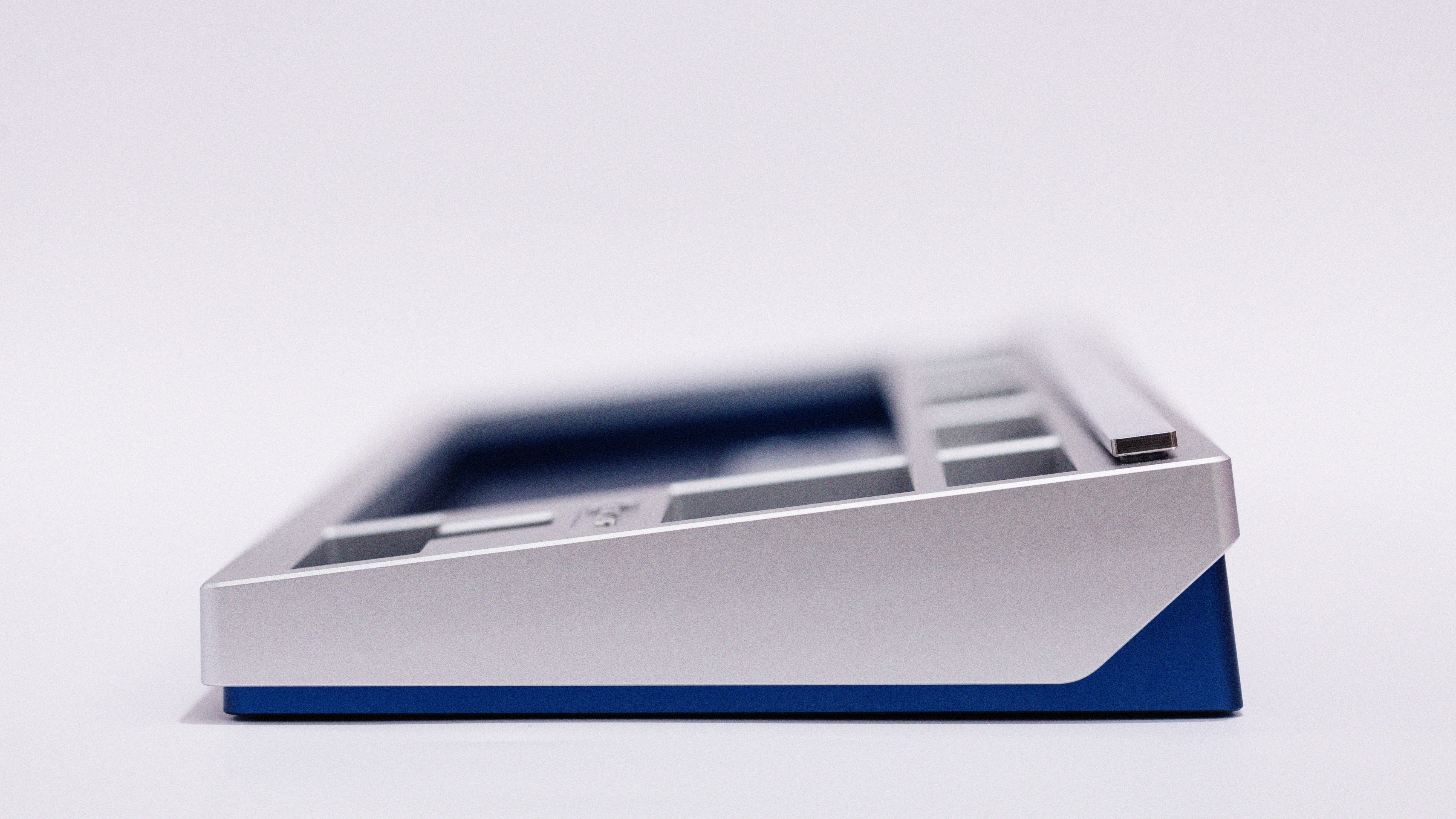

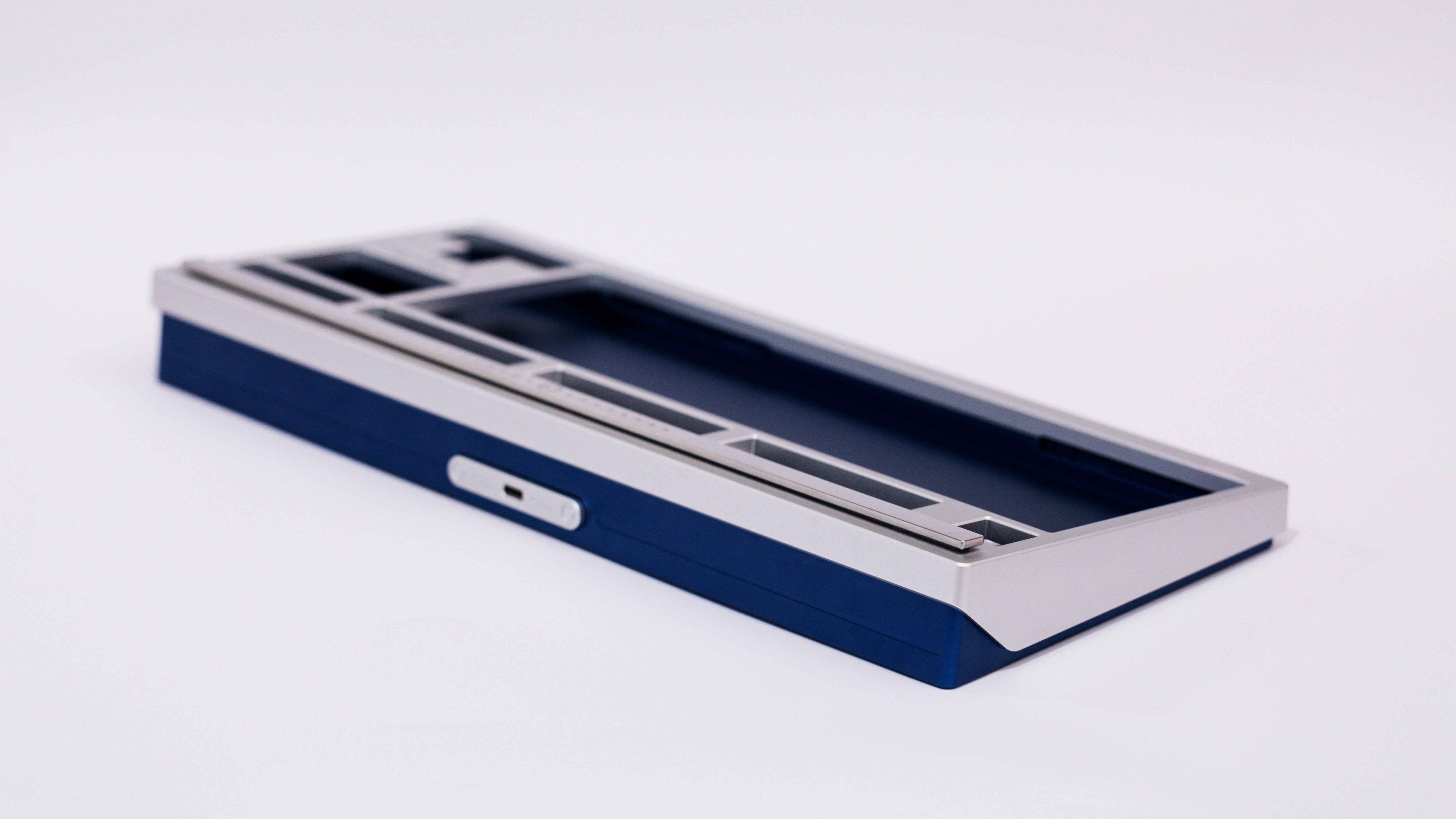

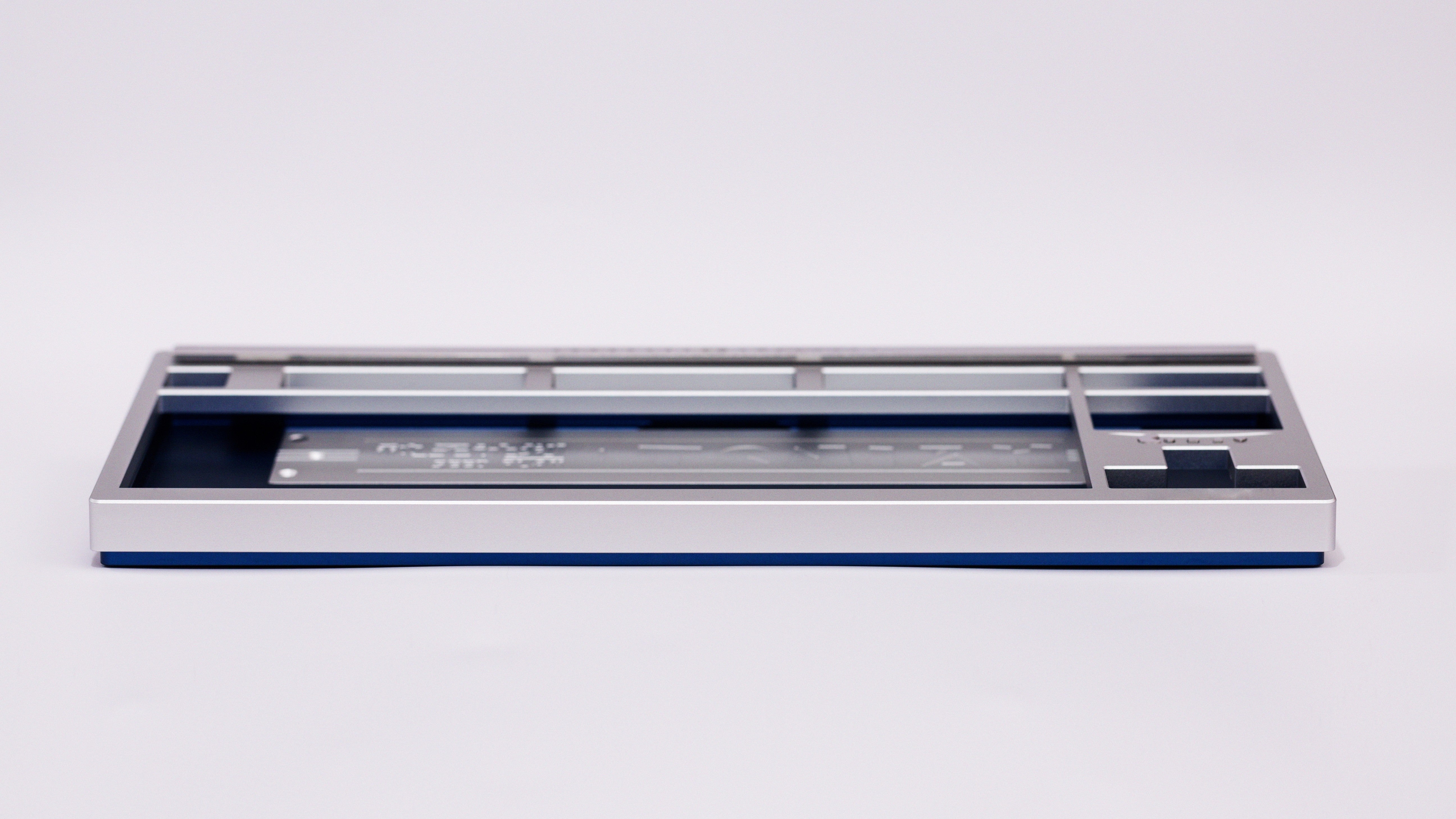

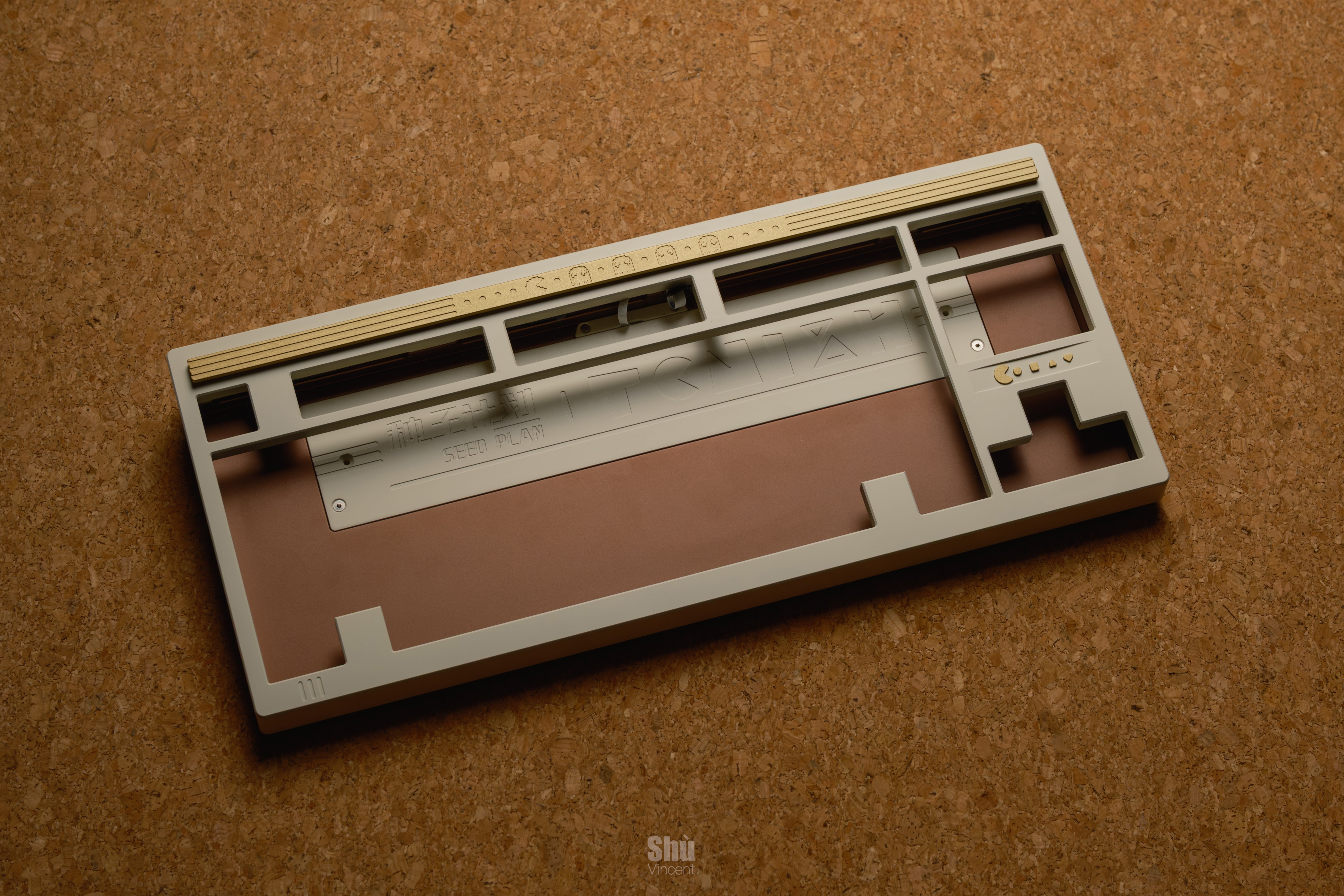

Layered case design: Creates depth and visual contrast with multi-surface machining and two-tone finishes.

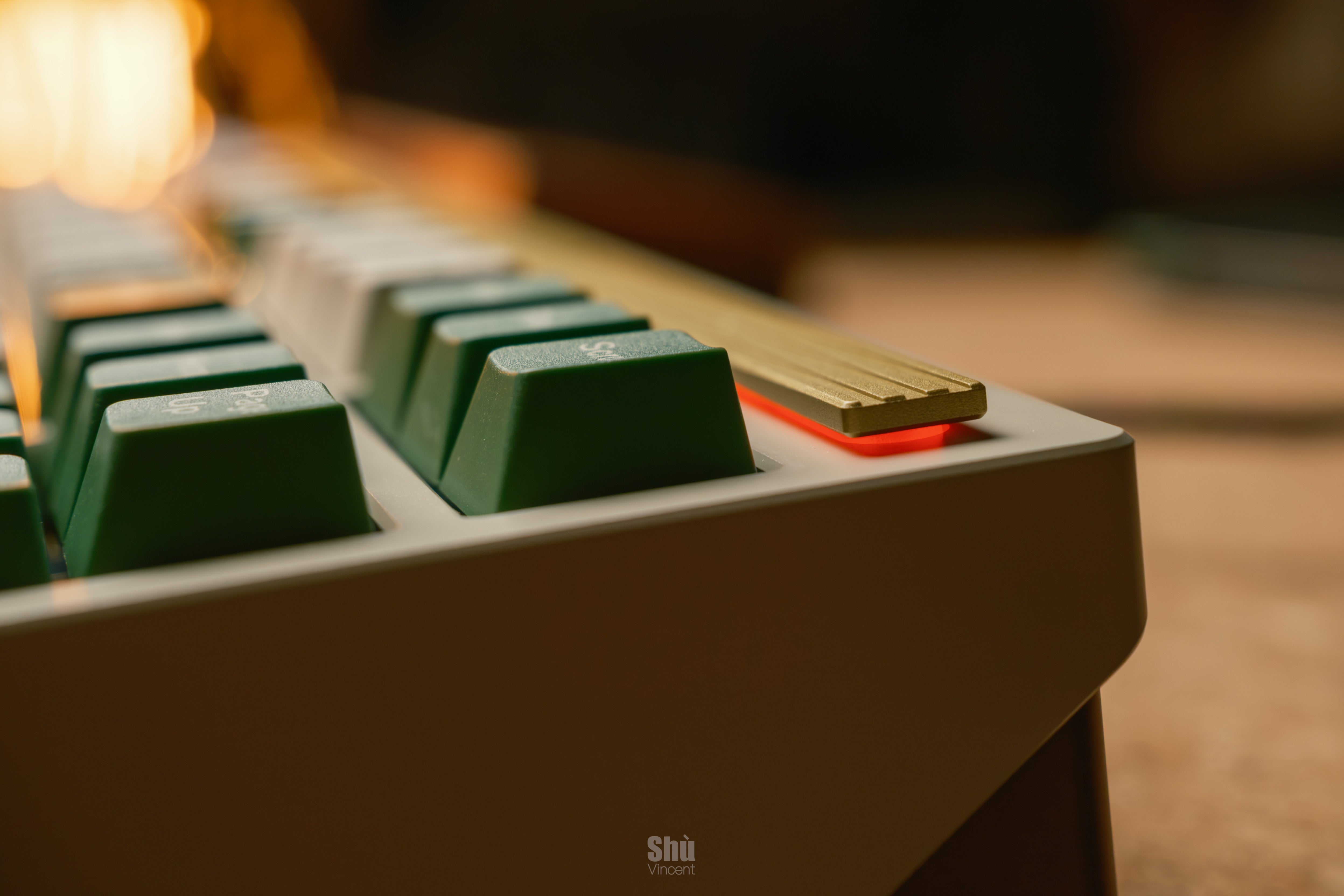

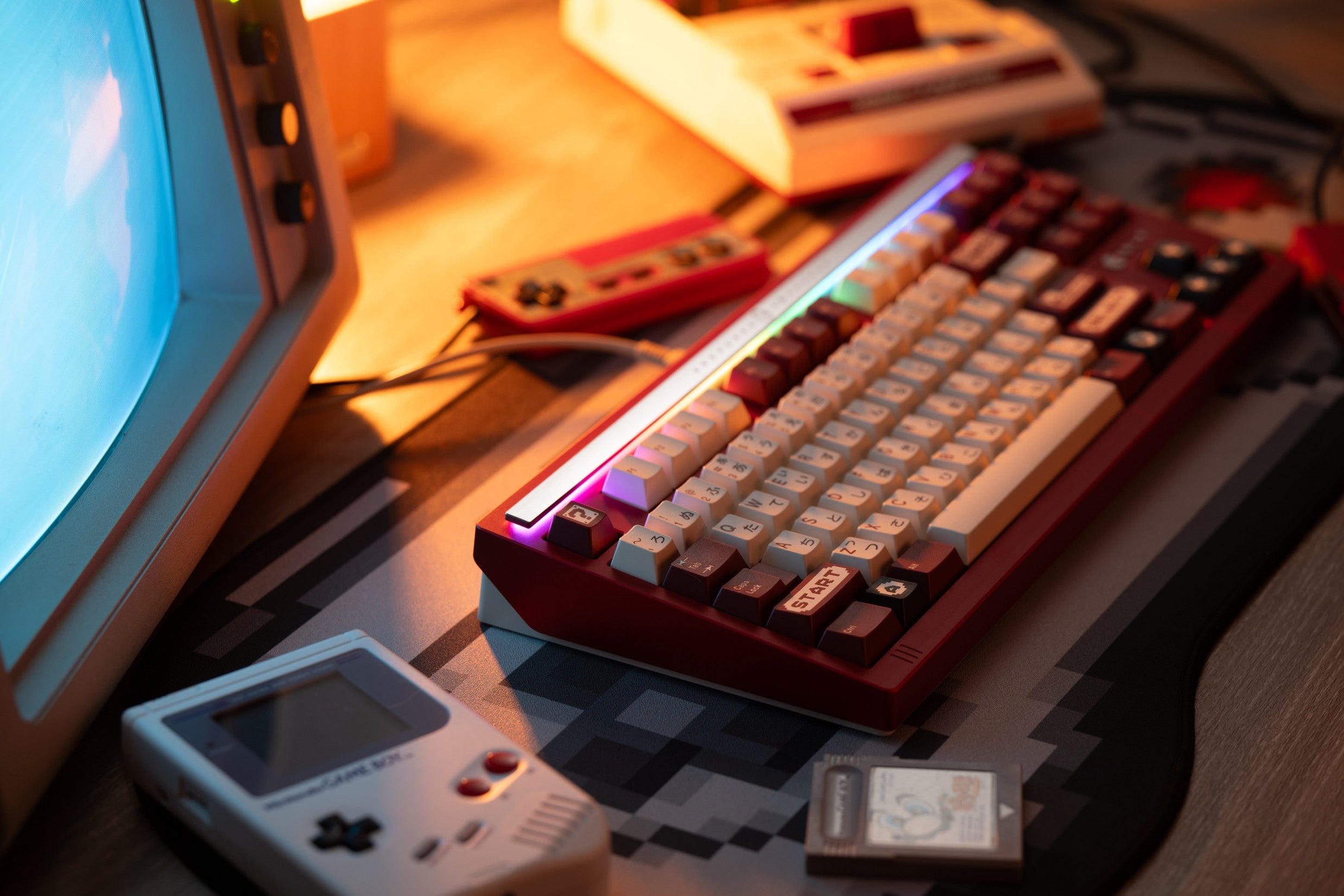

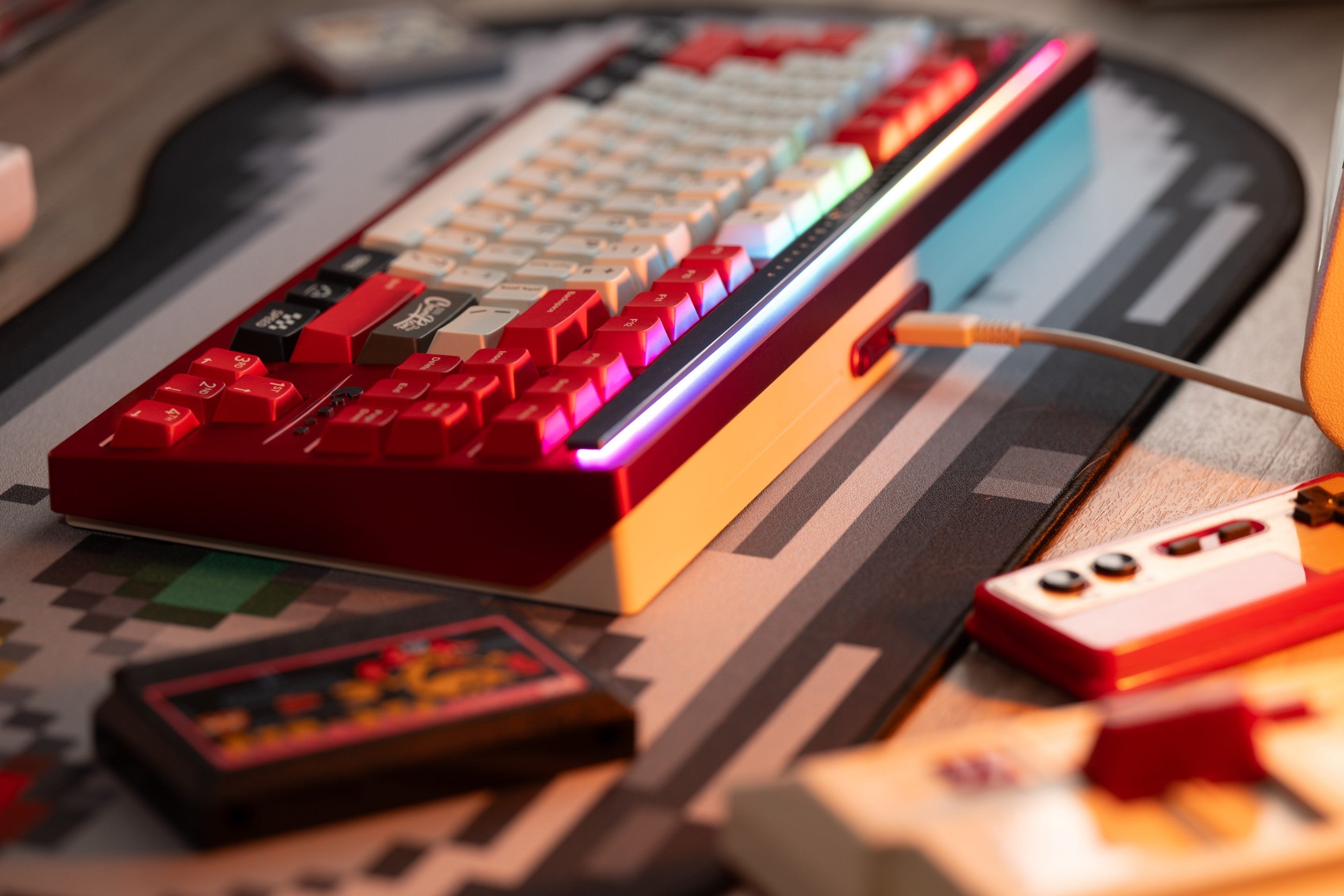

Hidden RGB lightbar: Positioned under the top forehead with diffuse reflection — light without glare.

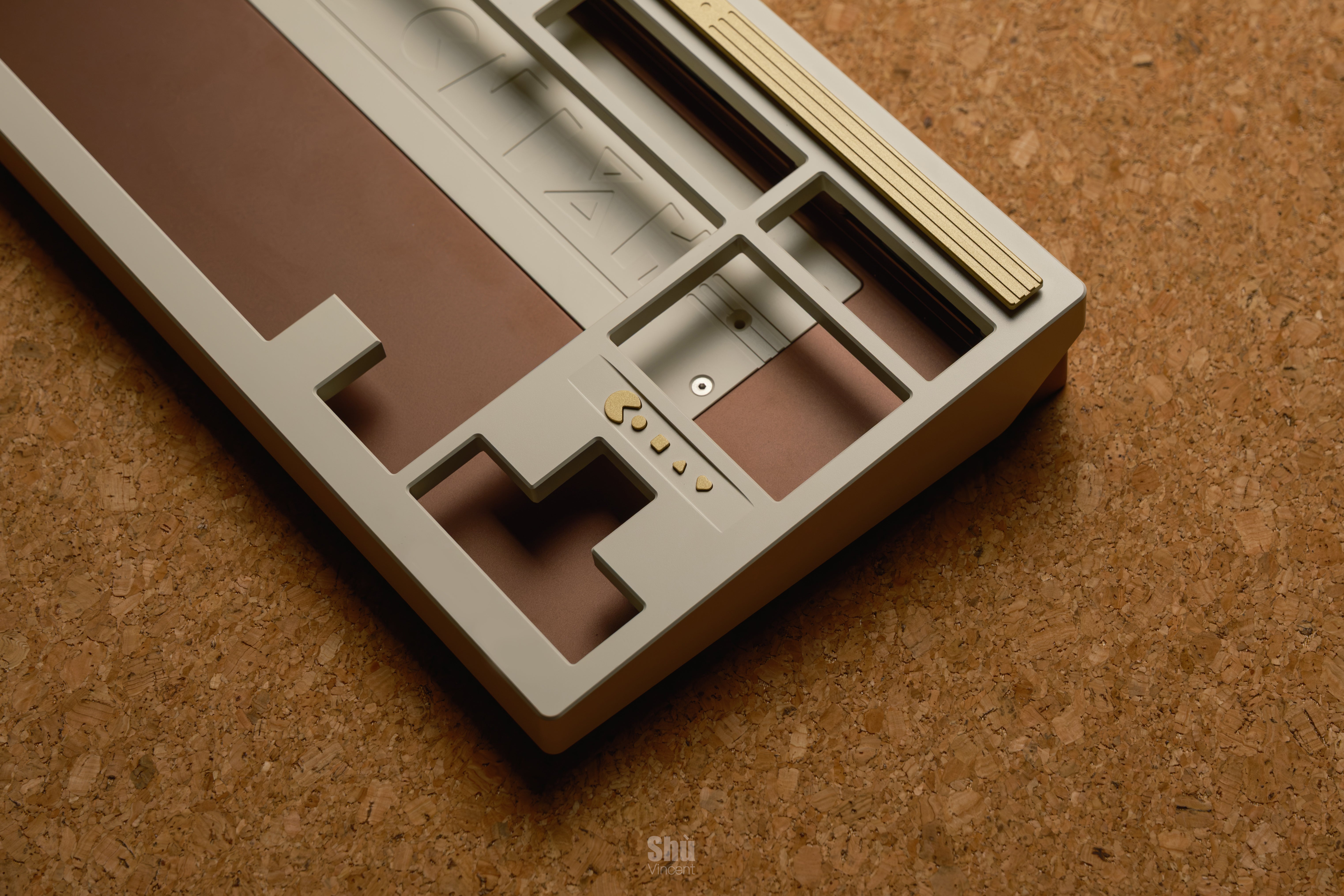

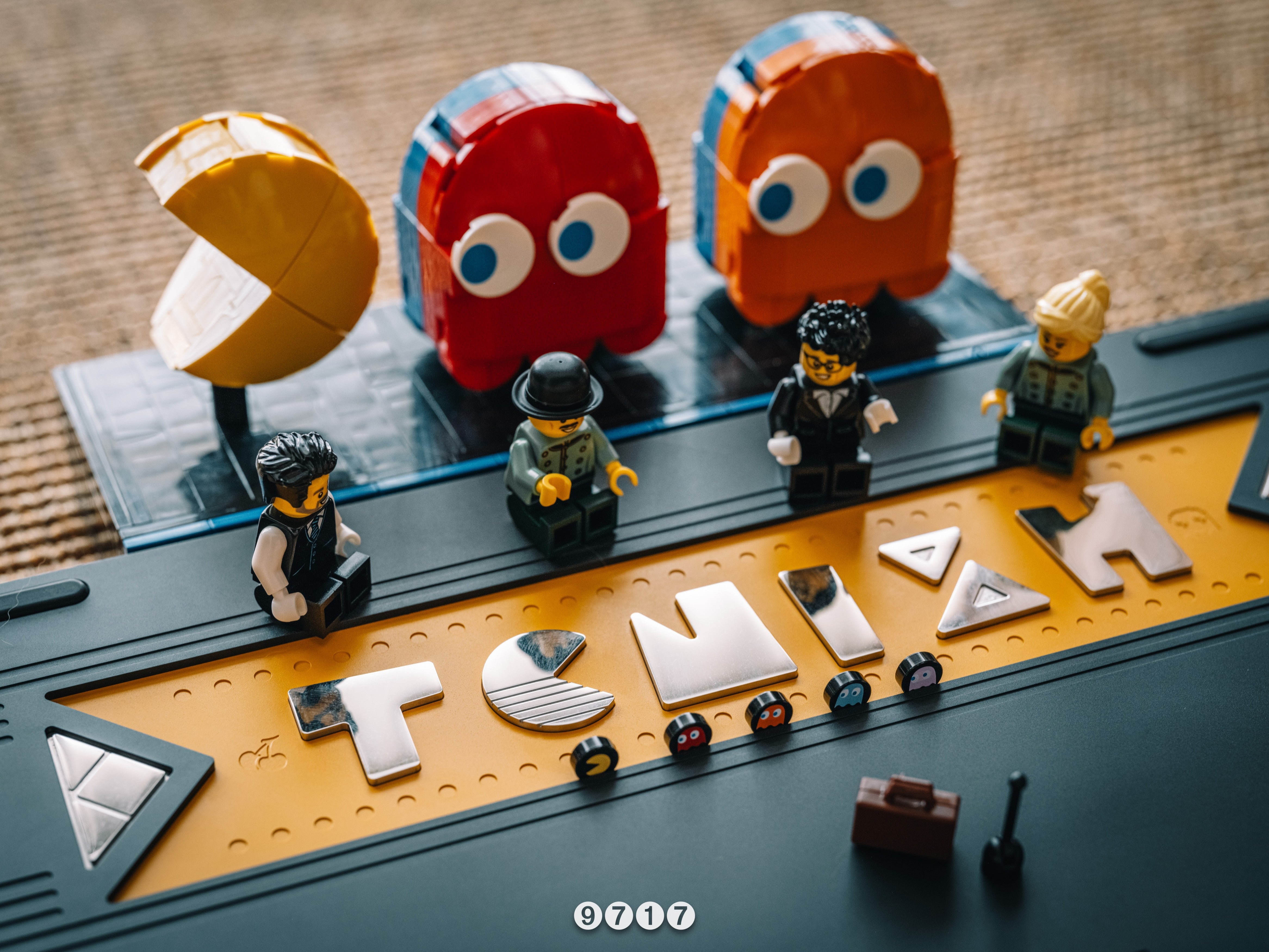

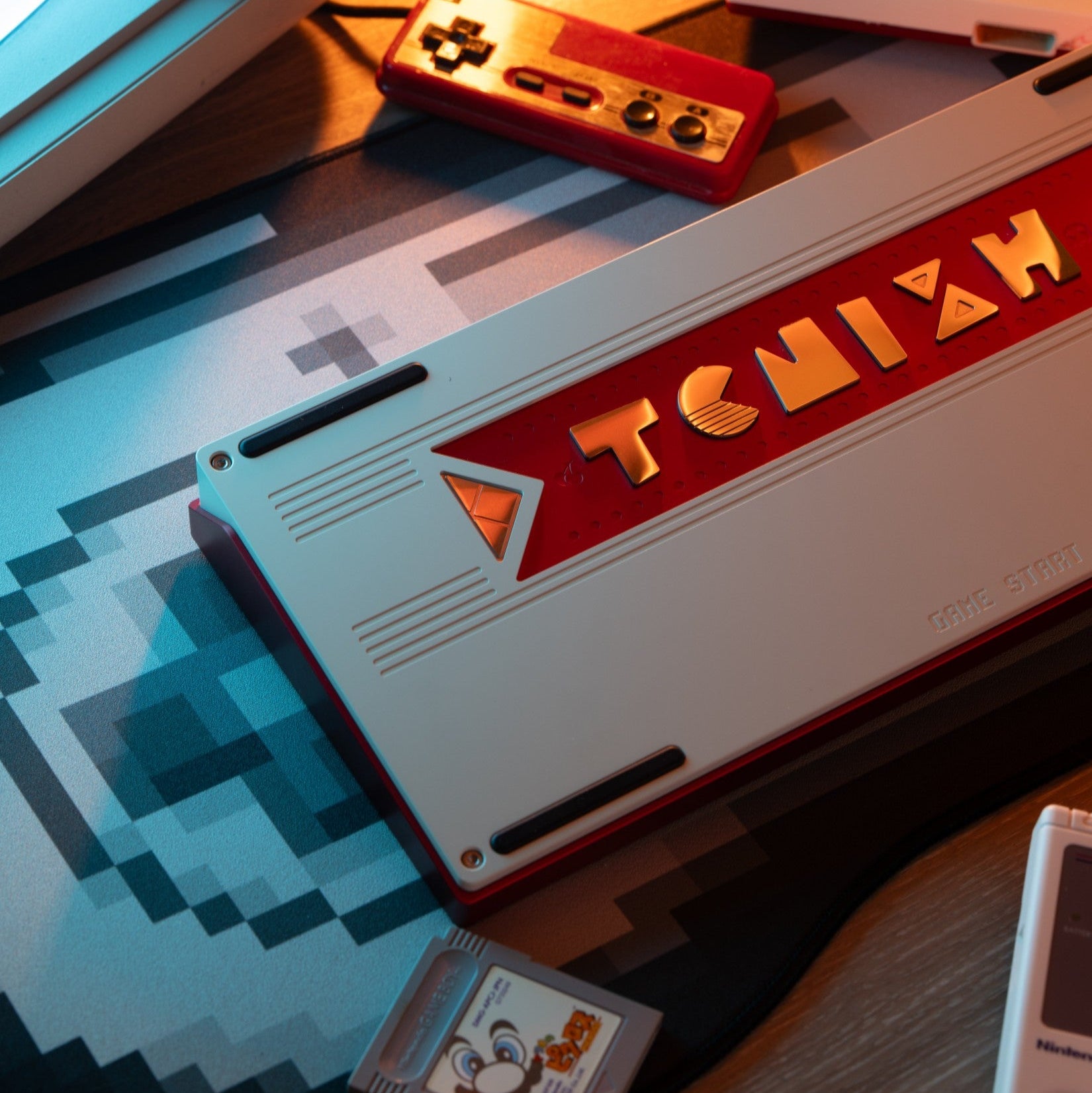

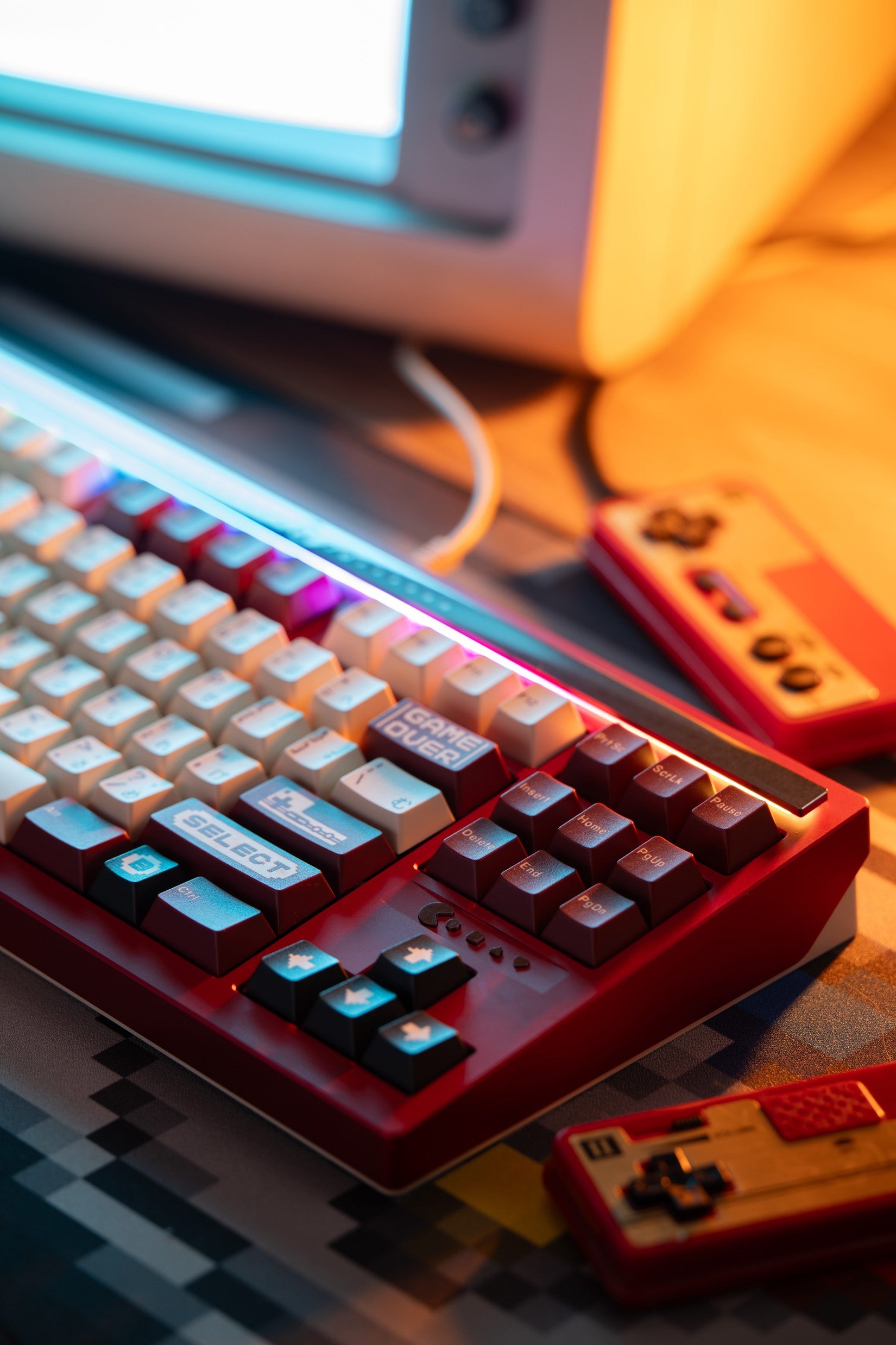

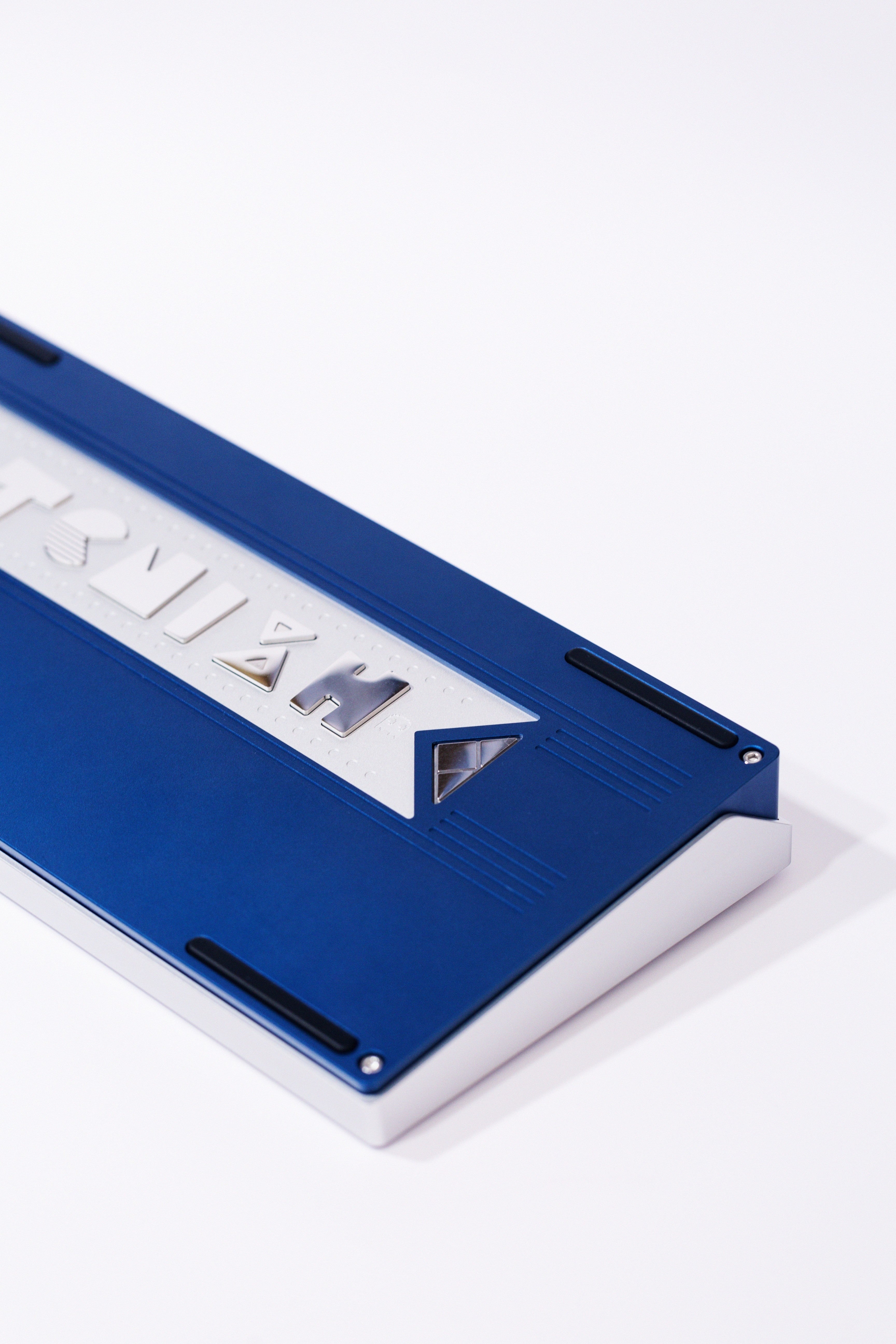

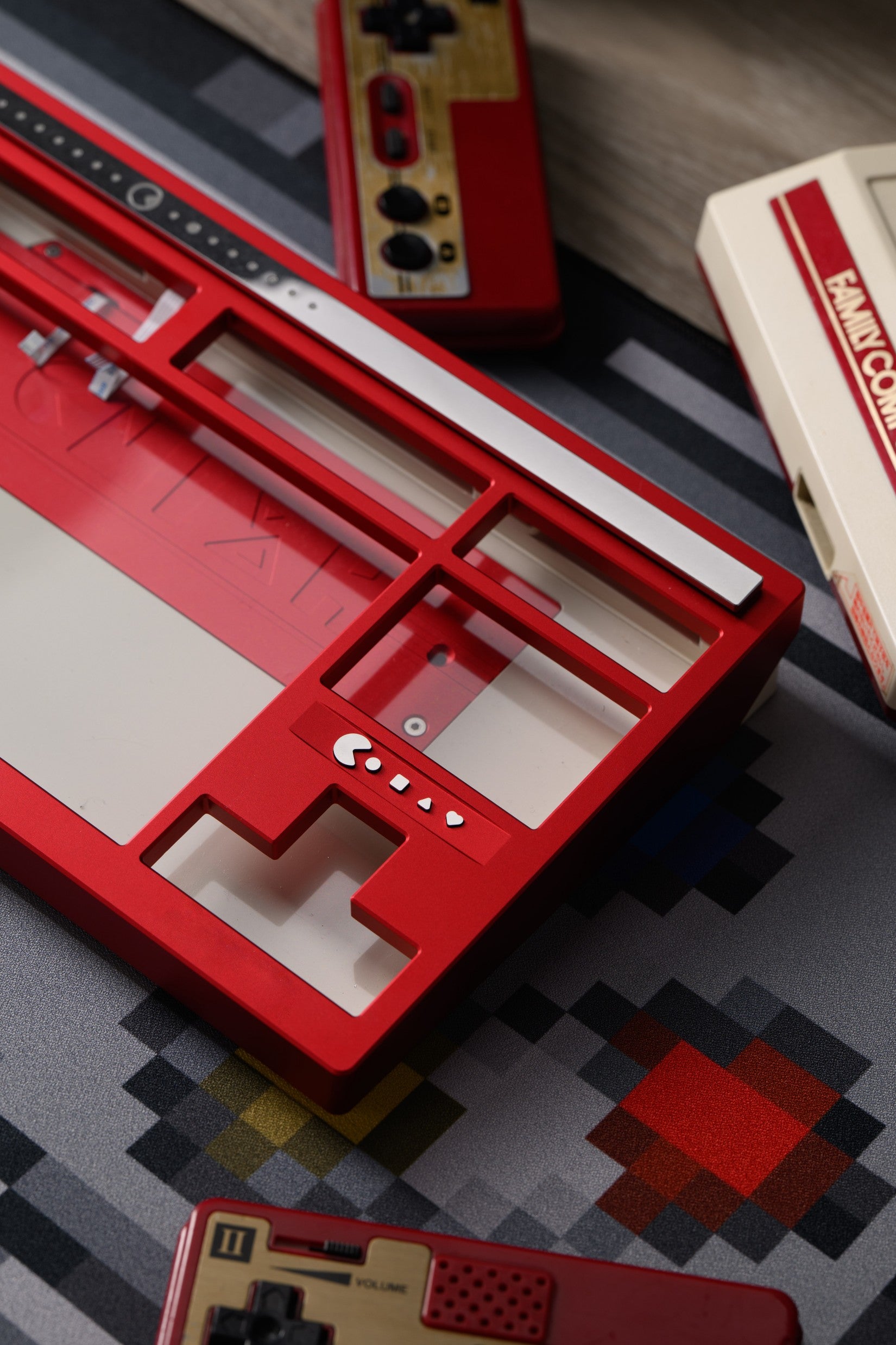

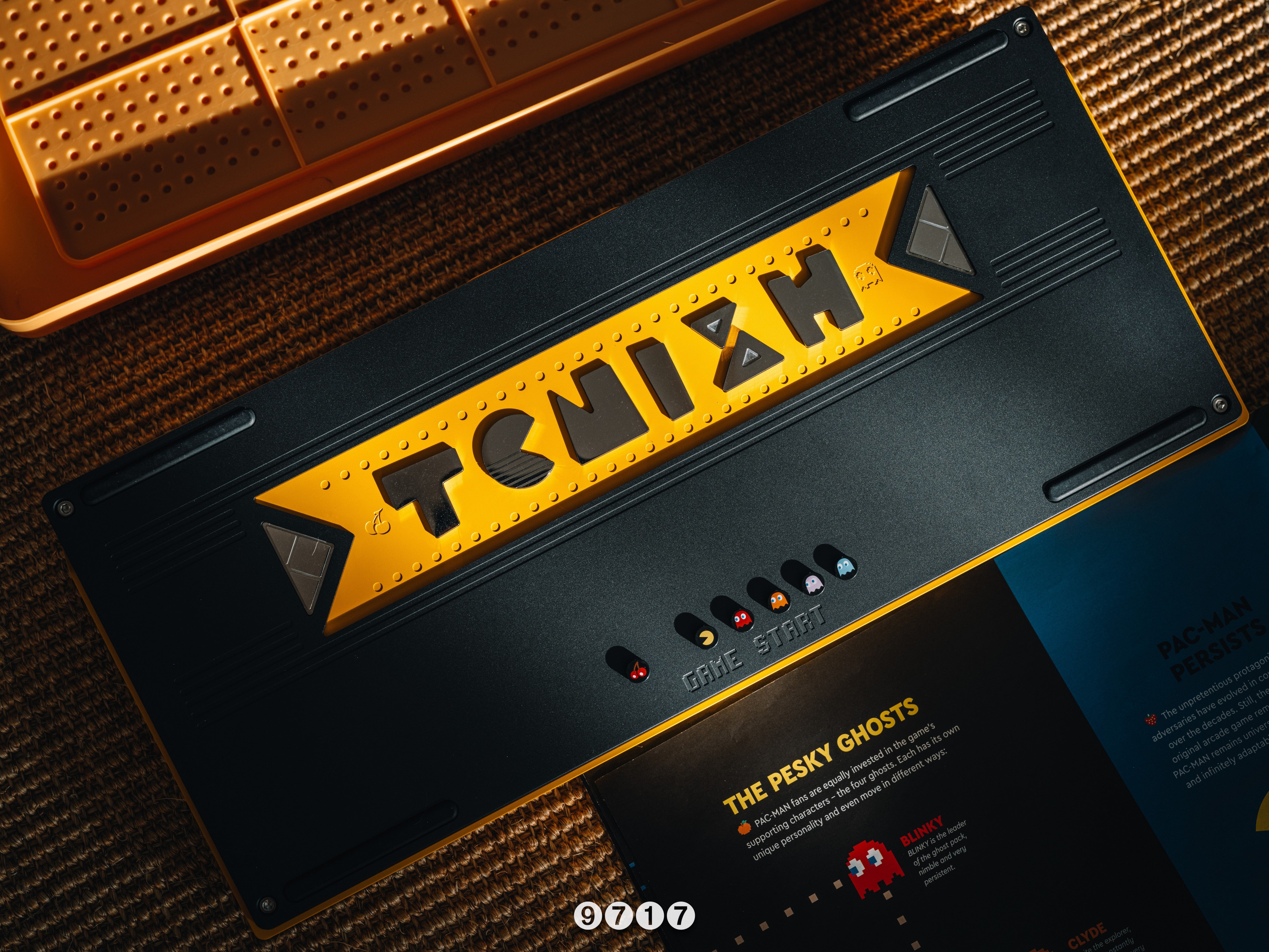

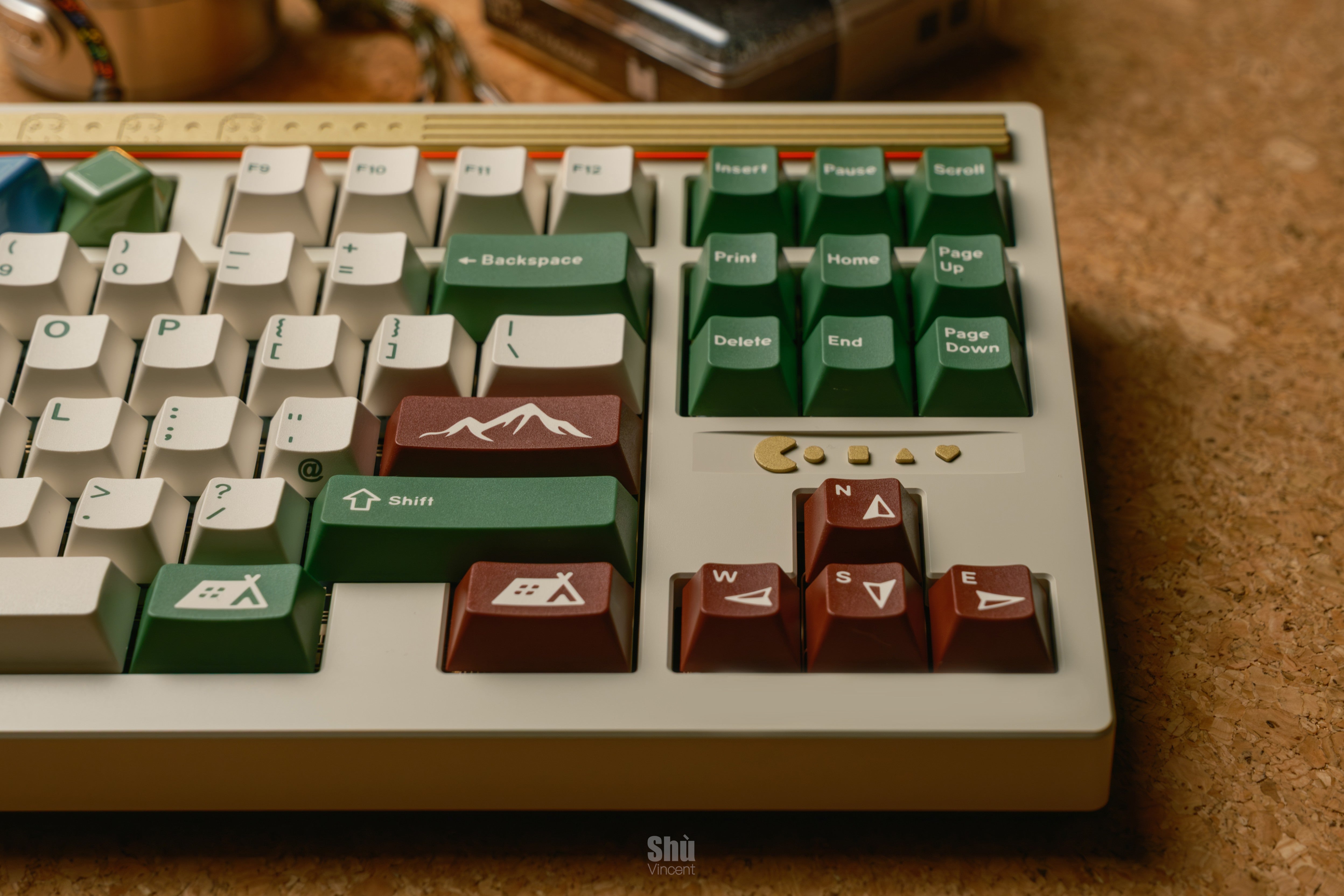

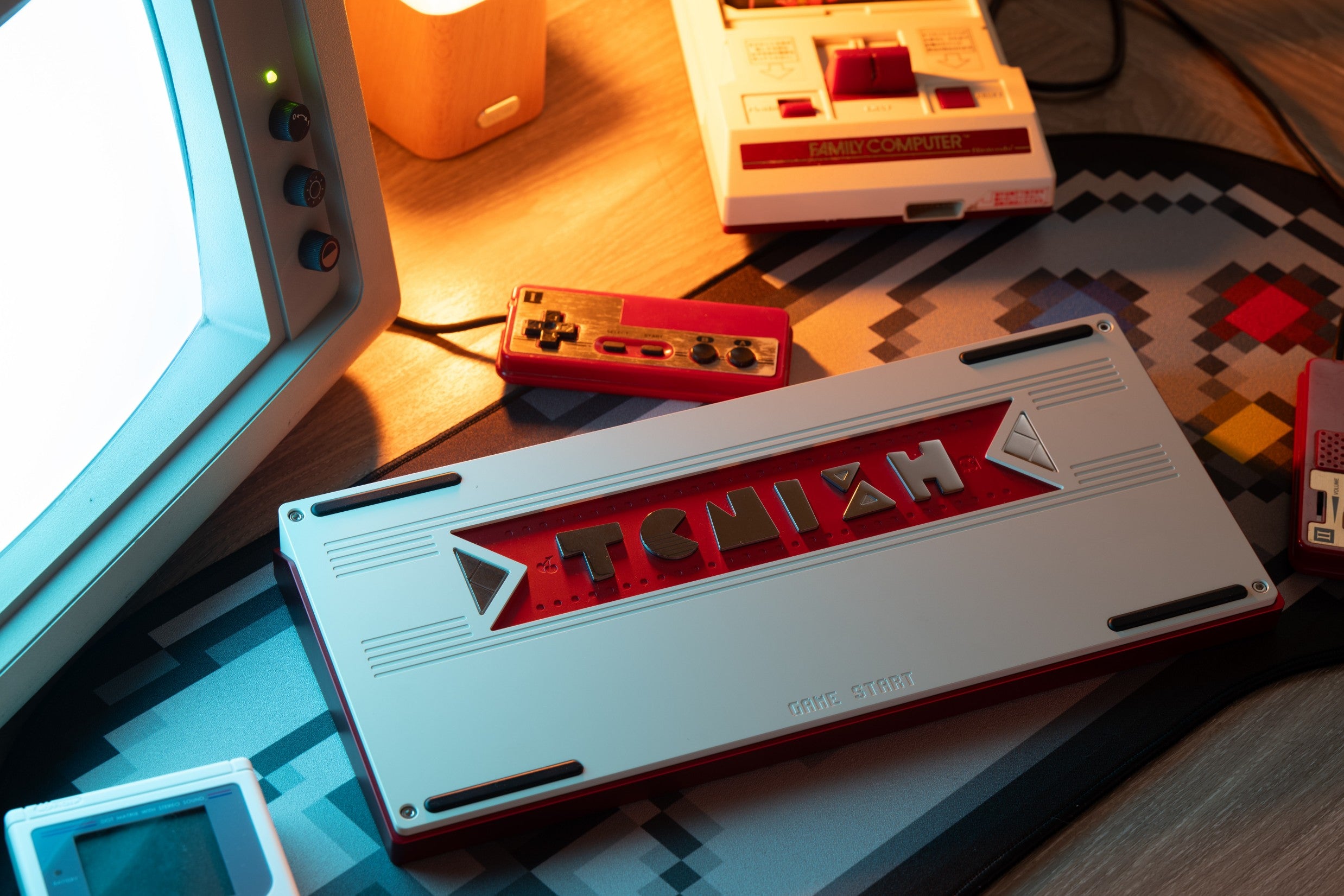

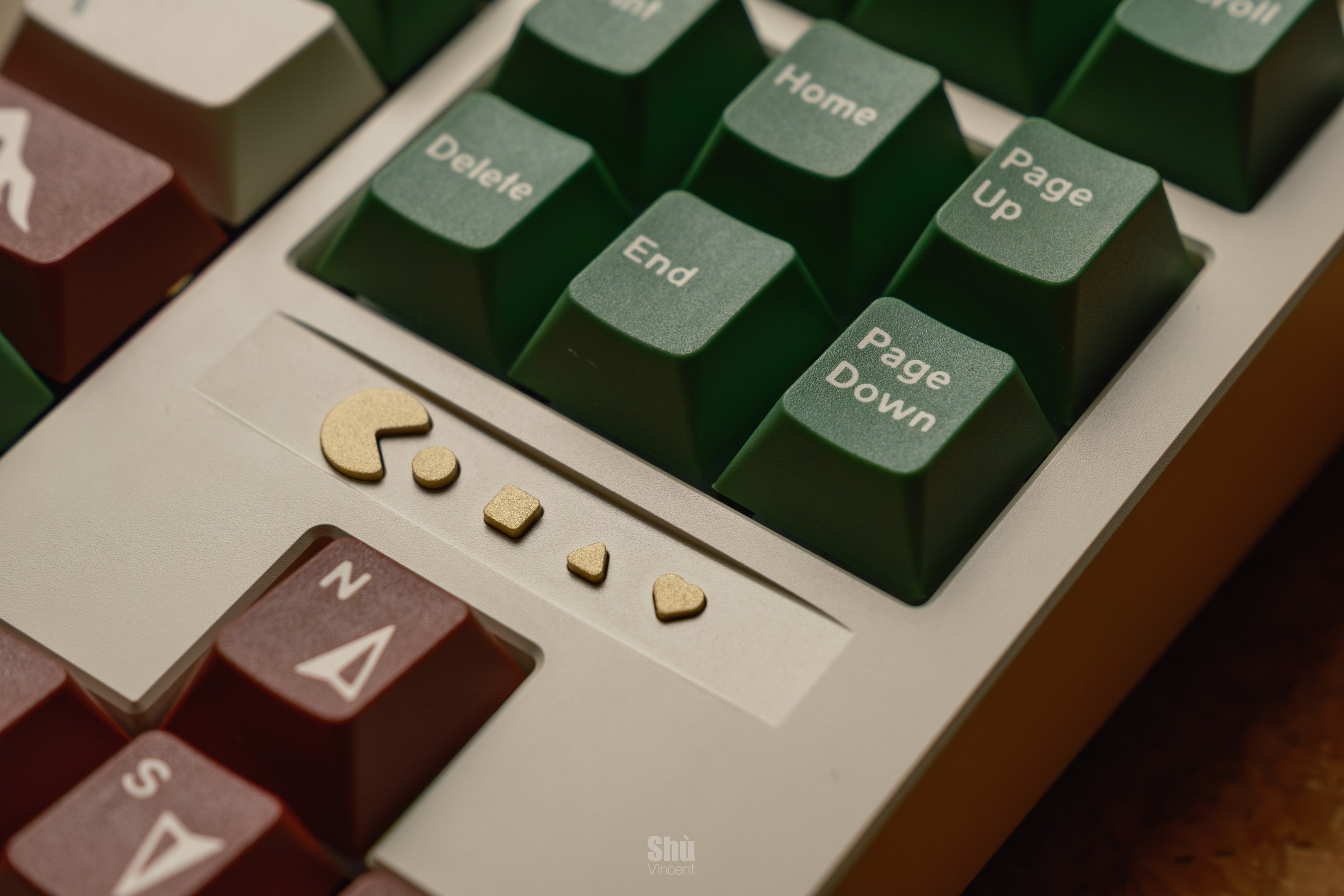

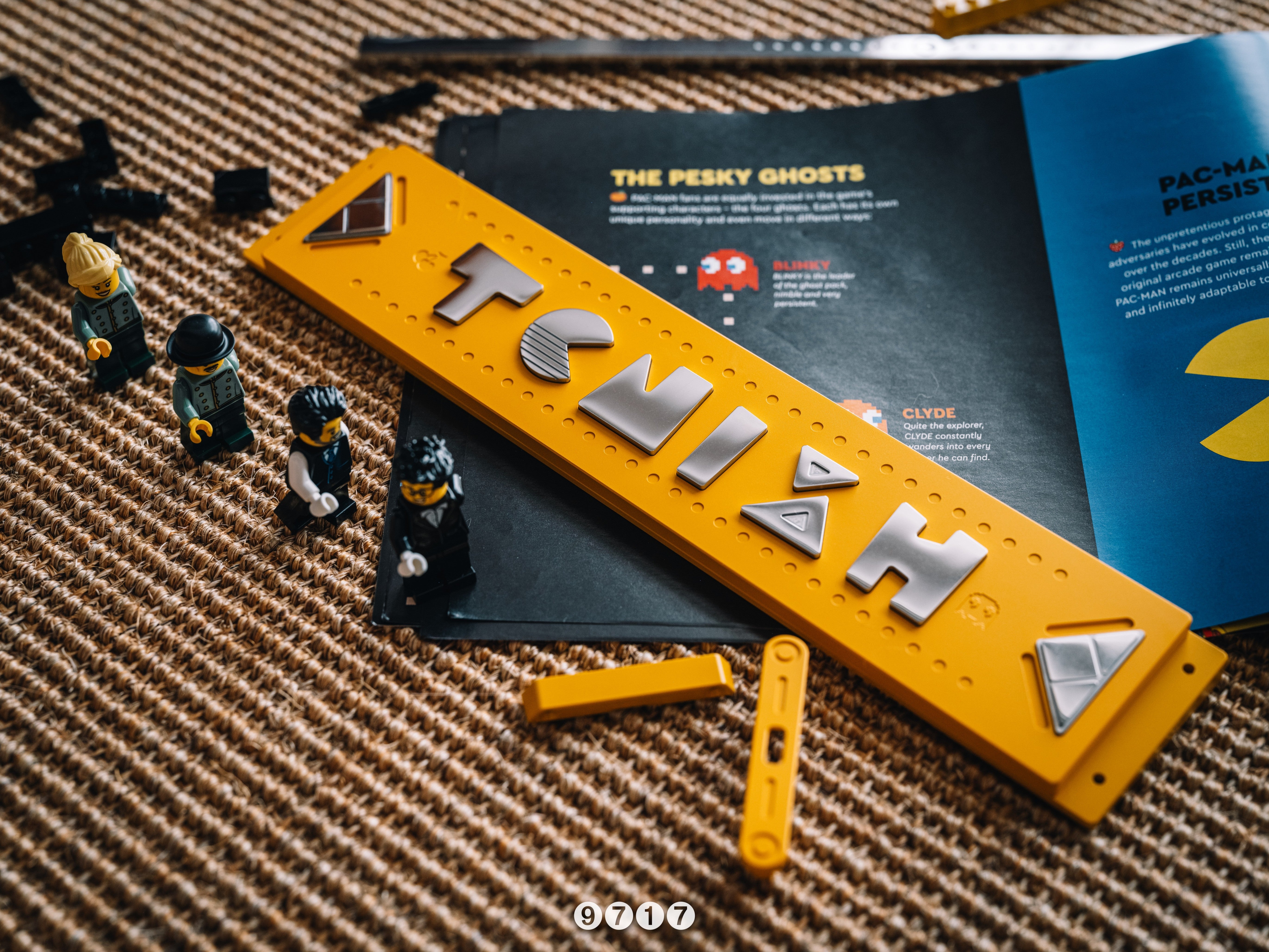

Pac-Man tribute: Unique nameplate above arrow keys & triangular cuts on the bottom weight, representing “imperfection creates classics.”

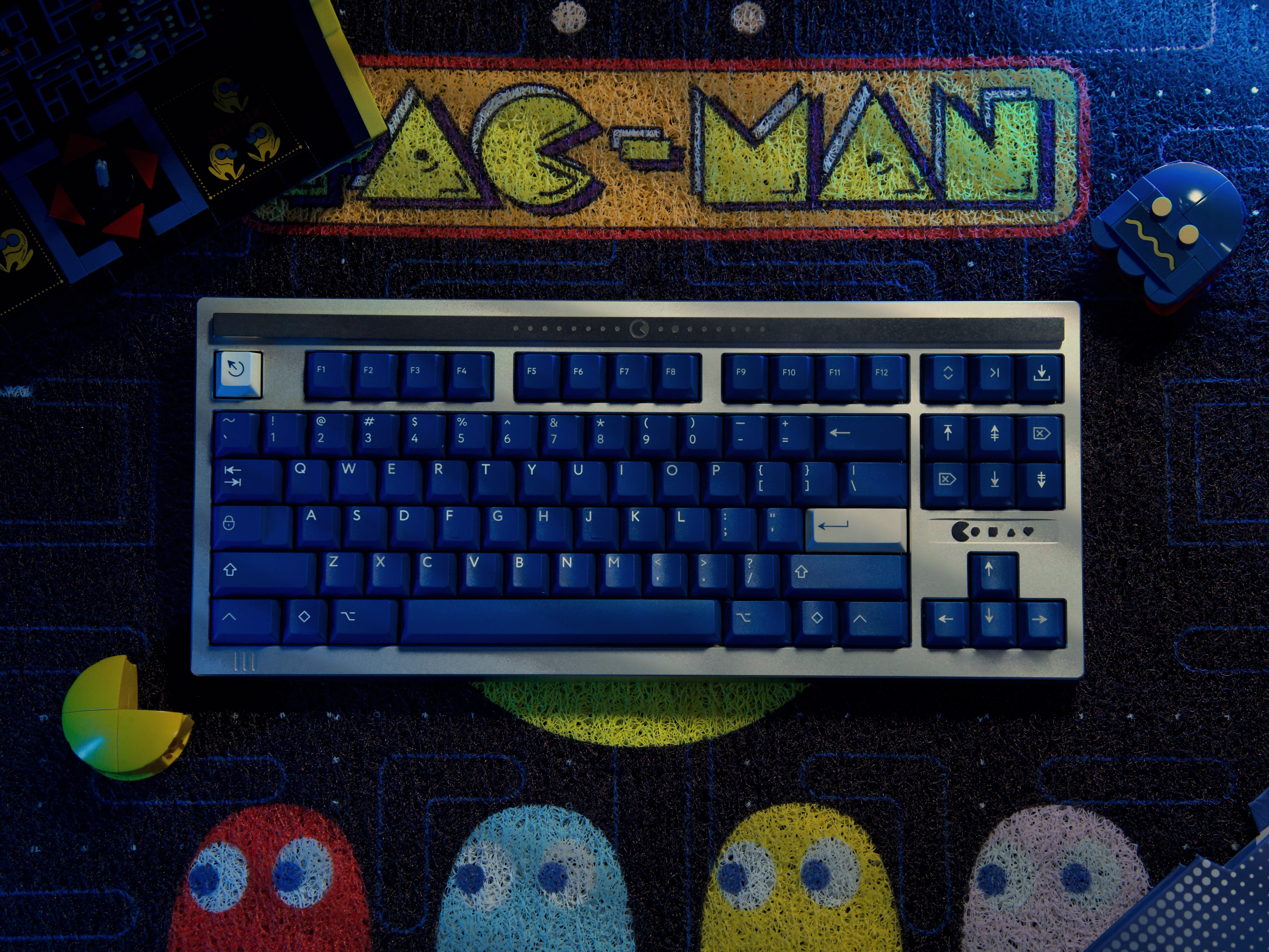

Multiple finishes: From Retro White & Warm Brown to Moon Silver & Ocean Blue, all paired with either sandblasted brass or stonewashed stainless steel accent parts.

Structure & Typing Feel

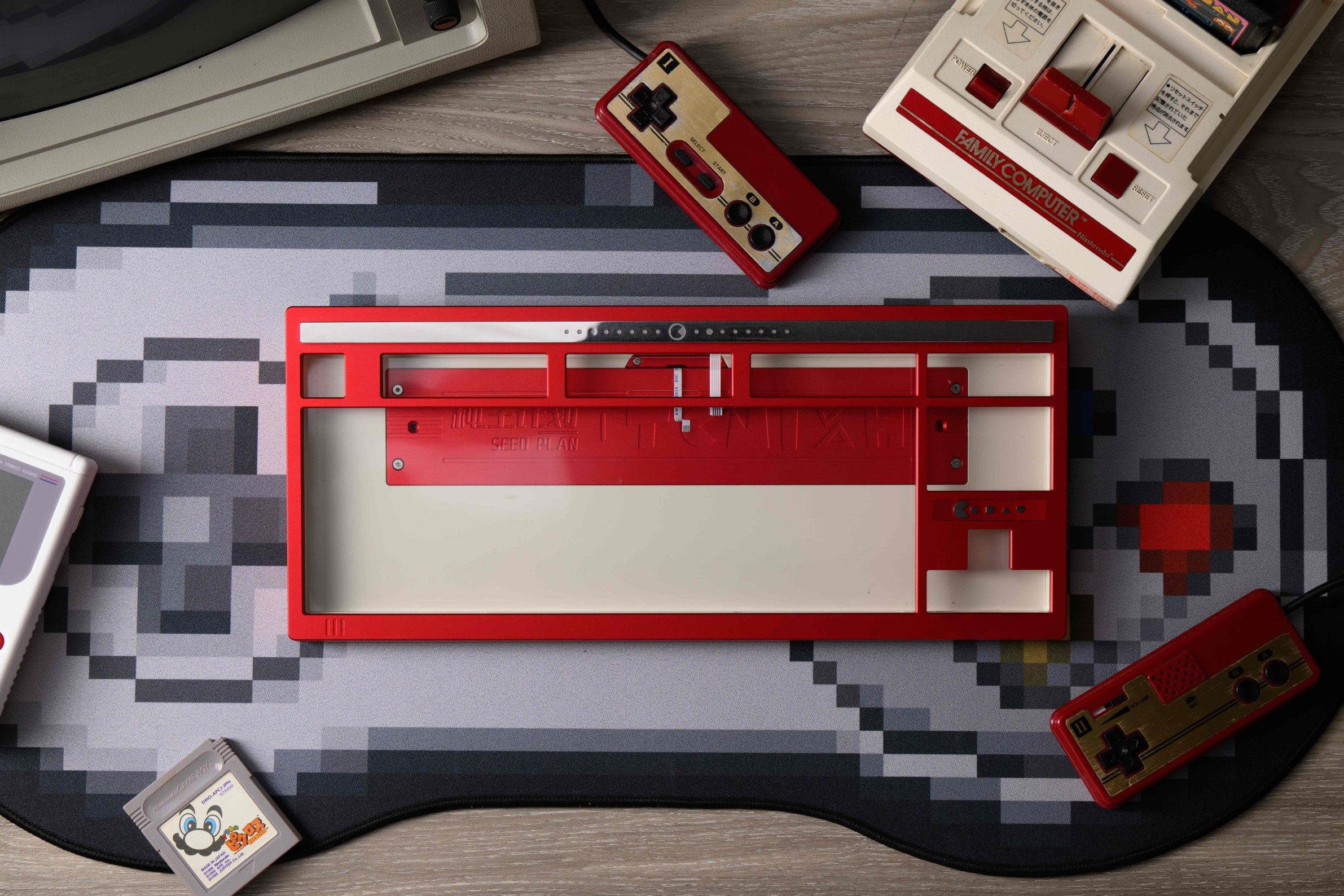

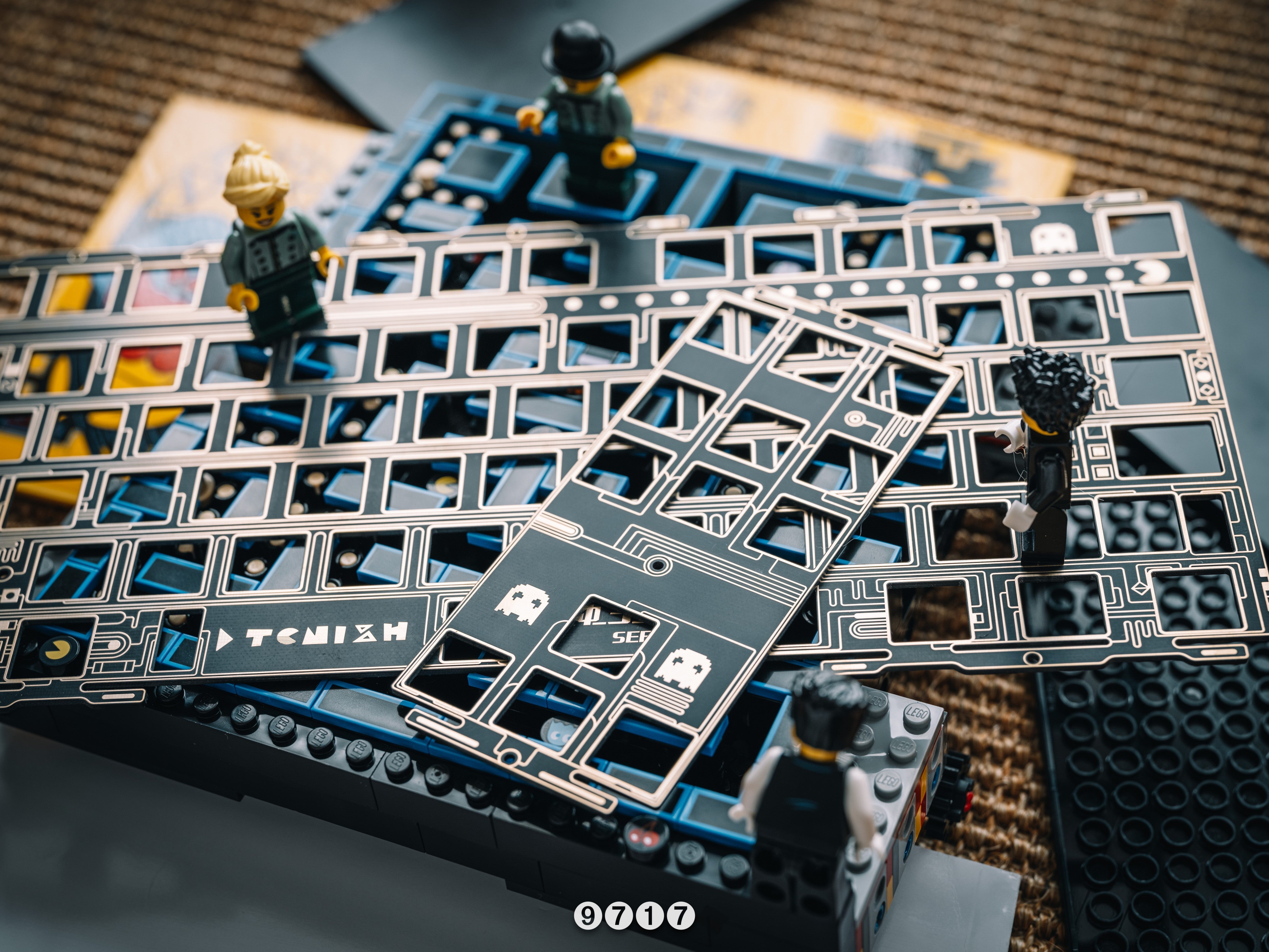

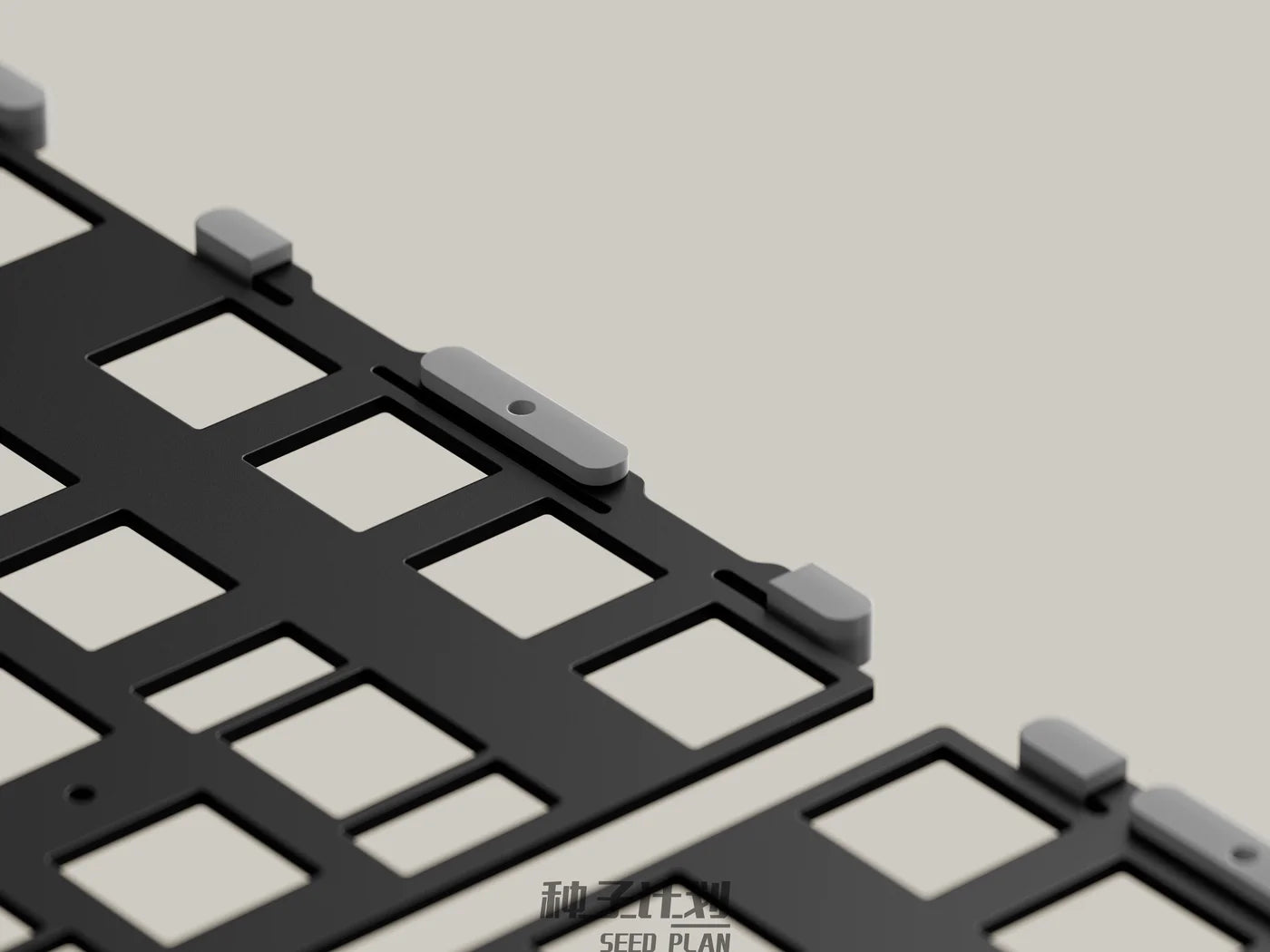

Split inner frame: Plate and PCB divided into left & right modules, ensuring consistency across a large TKL layout.
Mounting system: Silicone gasket + silicone dampening pads (TOP) for controlled flex and vibration isolation.
OG typing feel: 1.6mm non-slotted PCB paired with FR4 plate.
Noise & vibration control:
Force Break foam strips between top and bottom case
Reinforced 5mm-thick bottom case walls
Independent inner assembly with zero contact to outer case

Specifications

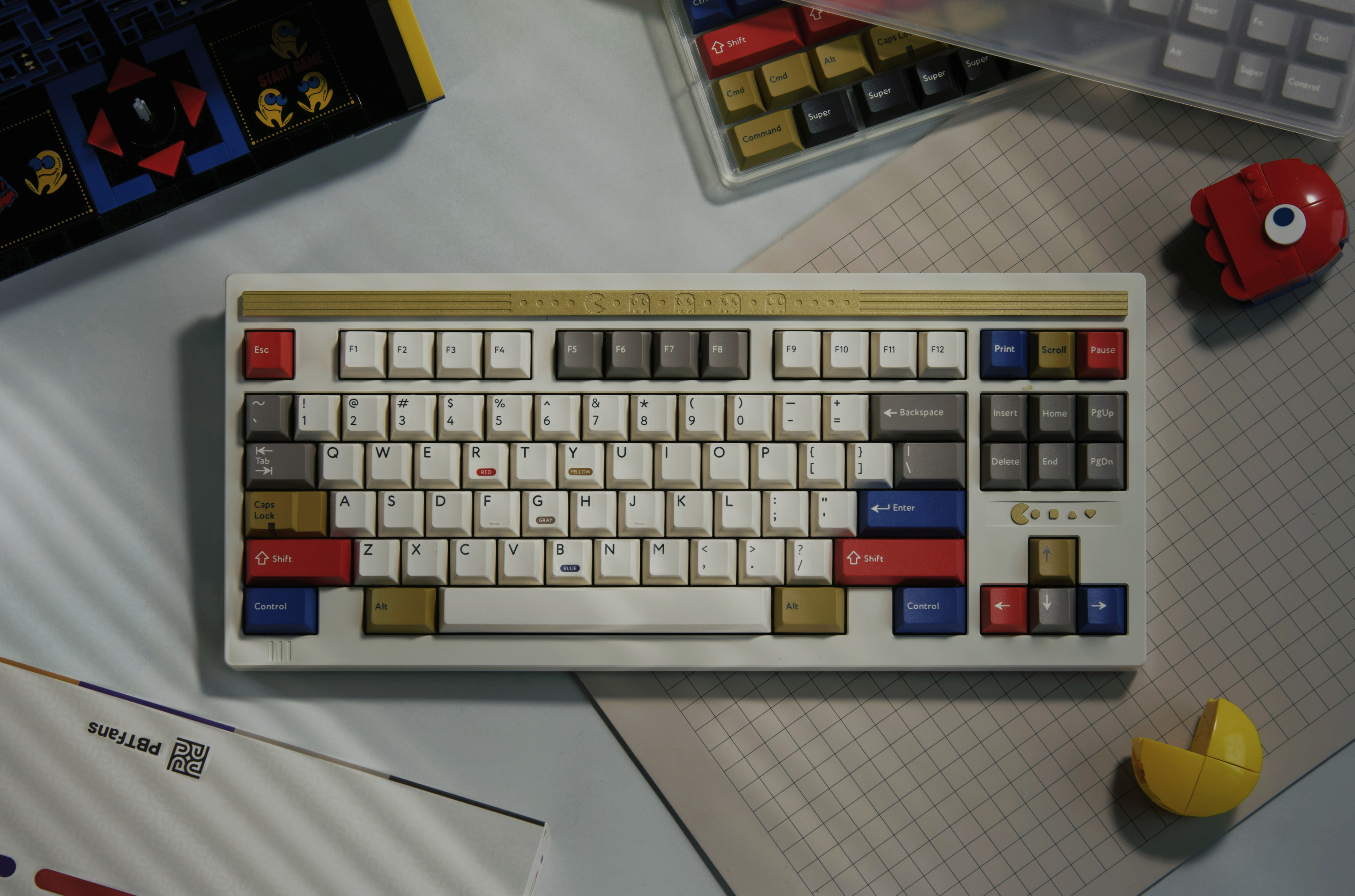

Layout: Standard 80% TKL (no F13, supports 7U spacebar & ANSI enter)

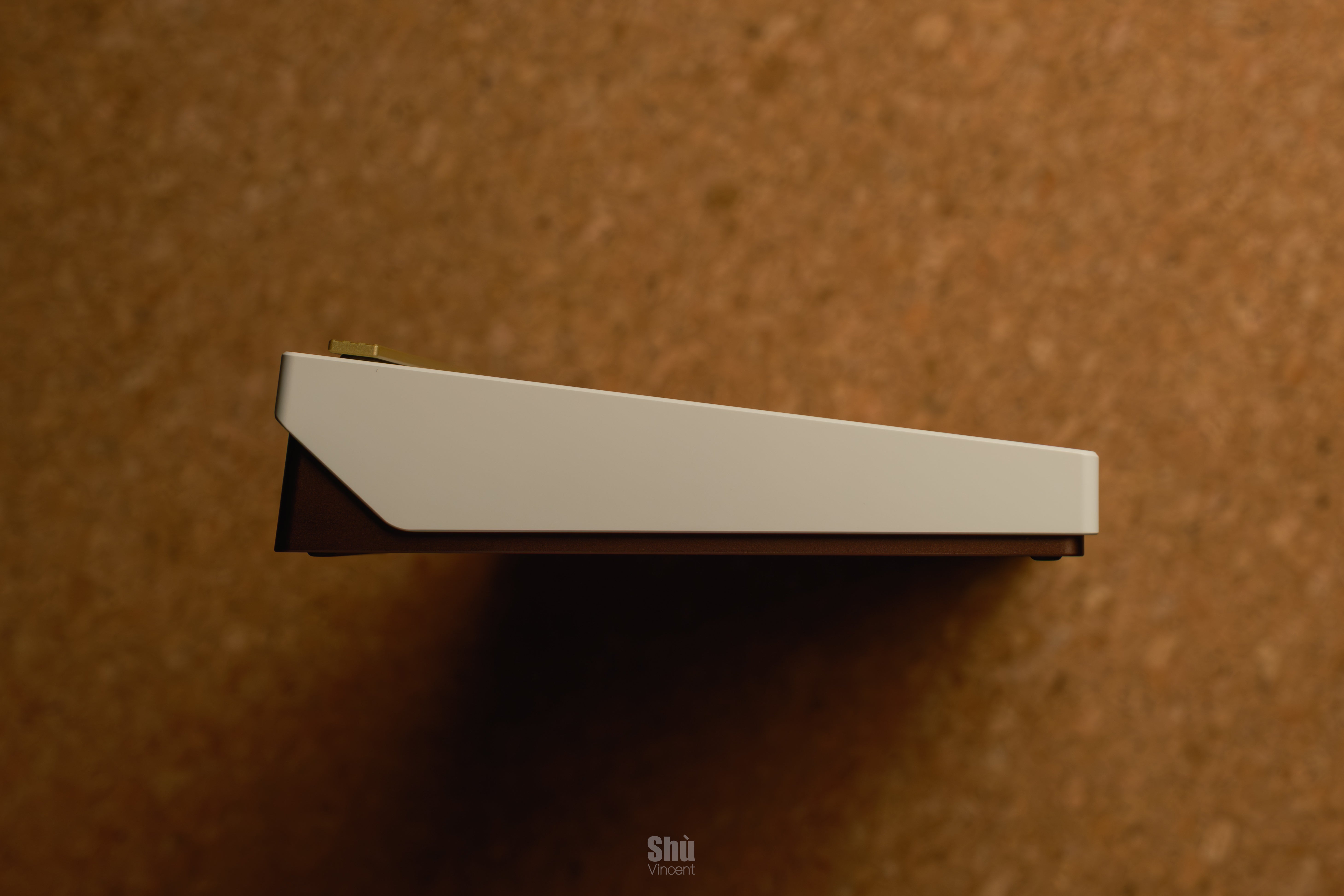

Typing angle: 7°
Front height: 18.7mm
Weight: 3.2kg (stainless) / 3.4kg (brass)
Firmware: QMK / Web VIA support

Group Buy Info

Options: Brass or Stainless steel accent parts
Timeline: 3 months after GB ends
Manufacturer: HongTu South (华南鸿图)

Tonish TKL

Retro Soul, Modern Engineering

Design Philosophy

Tonish TKL isn't just a keyboard — it's a story of retro inspiration, modern refinement, and a designer's relentless pursuit of perfection

Tonish TKL draws inspiration from two icons of the 1980s: The IBM Model F keyboard and the cultural phenomenon of Pac-Man.

The design blends retro charm with playful creativity, delivering a keyboard that is both functional and full of character

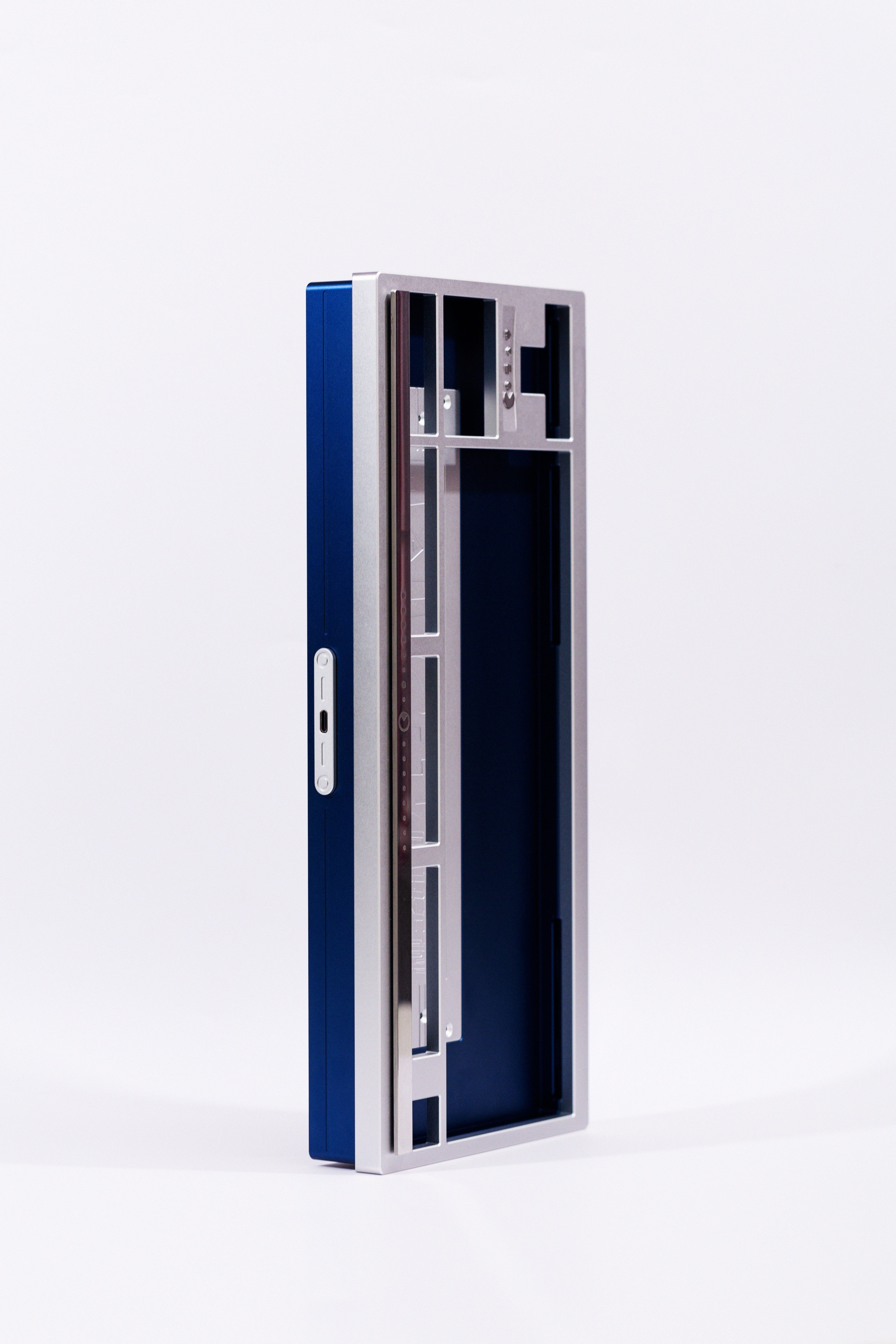

Layered case design

Multi-surface machining with two-tone finishes creates depth and visual contrast

Hidden RGB lightbar

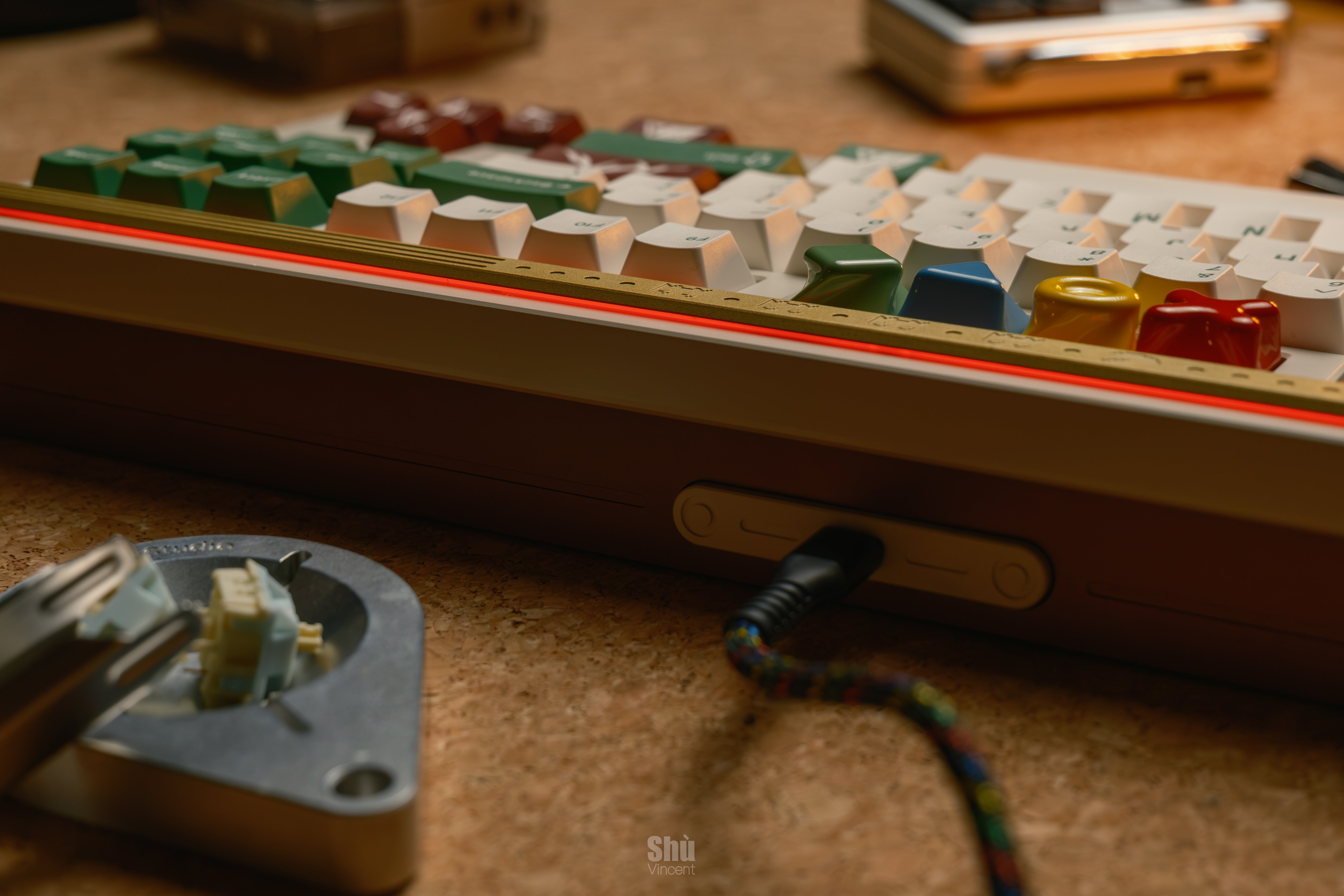

Positioned under the top forehead with diffuse reflection — glowing without glare

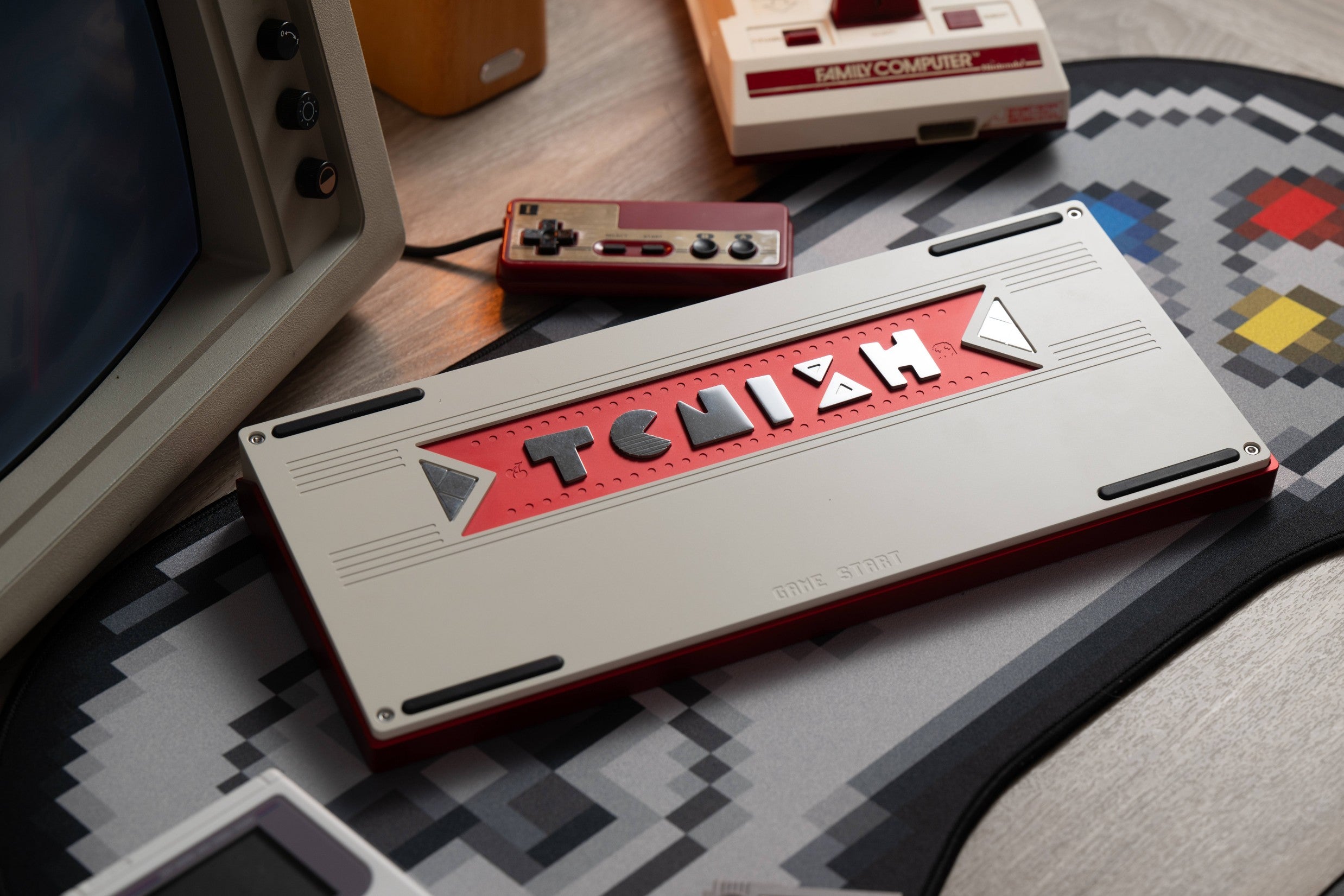

Pac-Man tribute

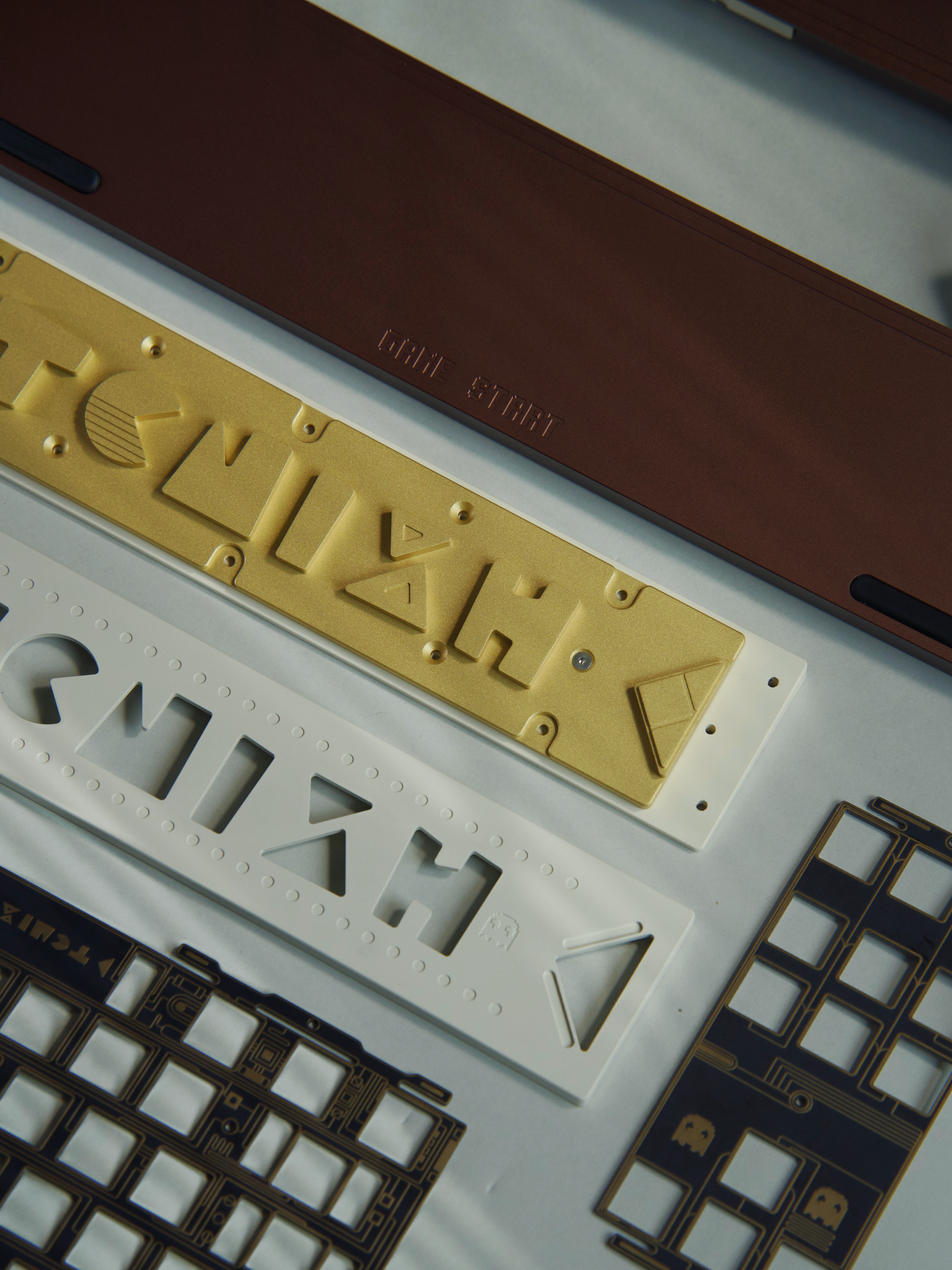

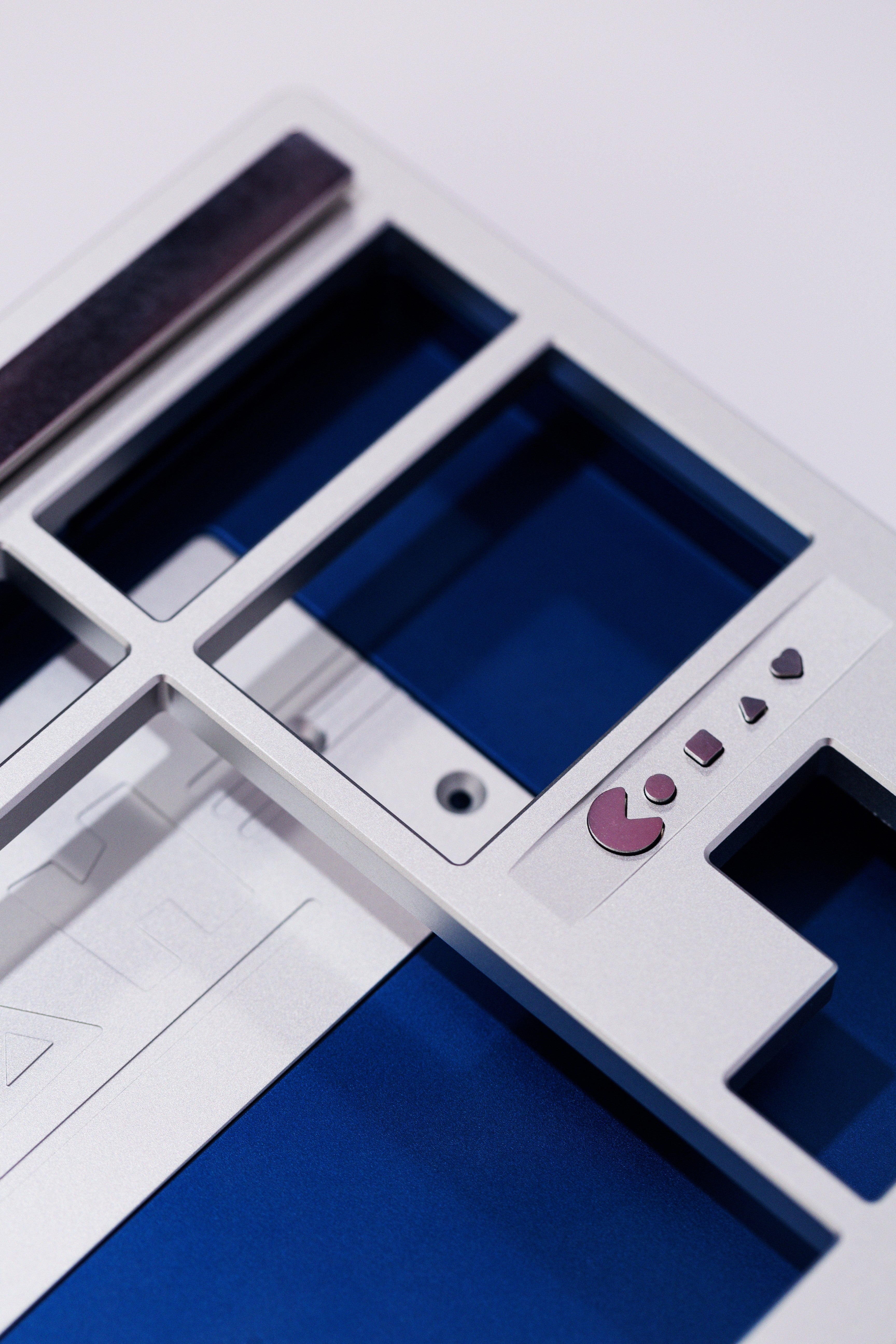

Custom nameplate above arrow keys & triangular cuts on the bottom weight, symbolizing that imperfection creates classics

Multiple finishes

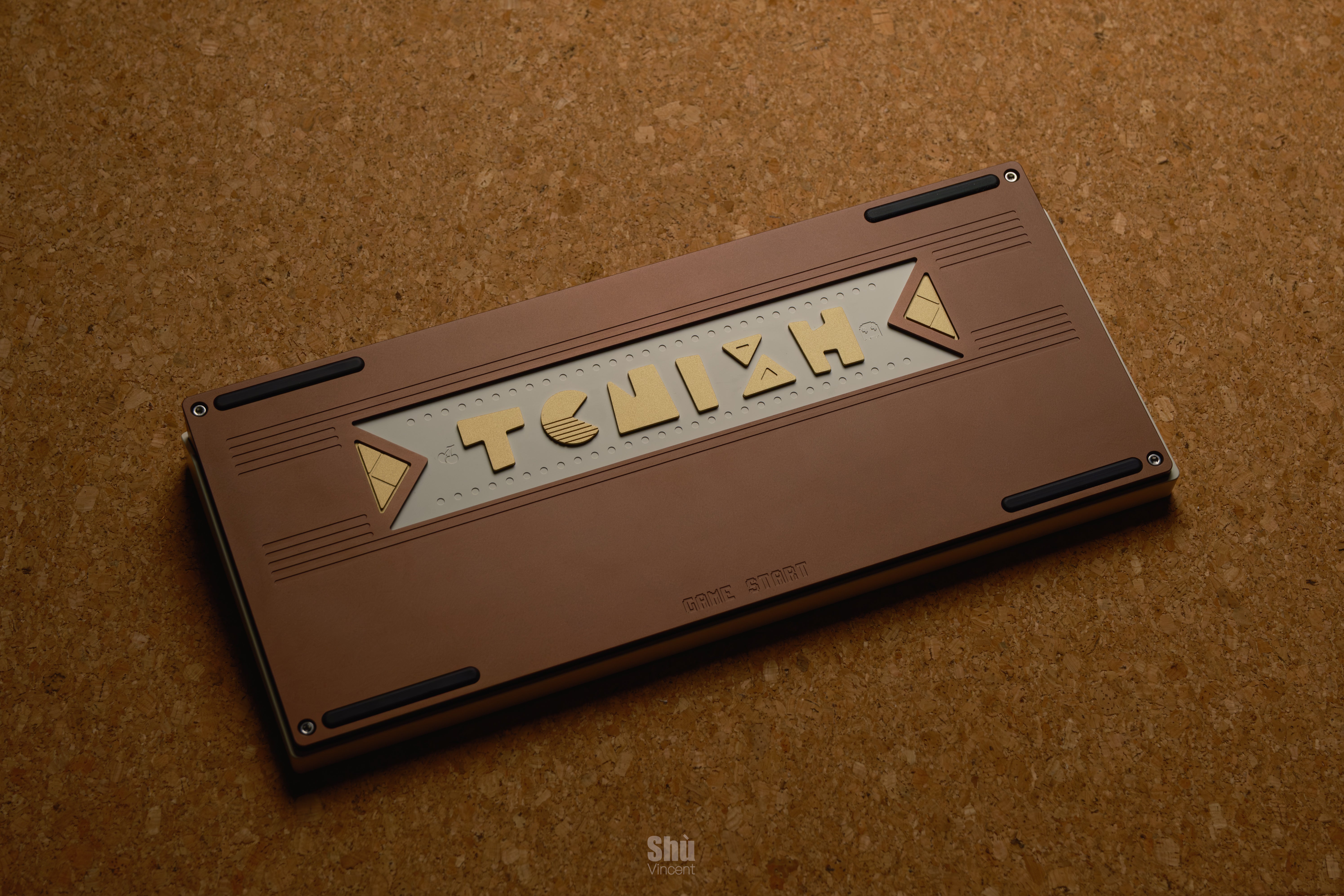

Retro White, Warm Brown, Moon Silver, Ocean Blue — paired with sandblasted brass or stonewashed stainless steel accents.

Structure & Typing Feel

Split inner frame

Plate and PCB divided into left & right modules for consistent typing across the TKL layout.

Mounting system

Silicone gasket + dampening pads provide controlled flex and vibration isolation

OG typing feel

1.6mm non-slotted PCB with FR4 plate.

Noise & vibration control

Force Break foam strips, 5mm reinforced case walls, independent inner assembly with zero contact to outer case.

Product Specifications

Layout

Standard 80% TKL (no F13, supports 7U spacebar & ANSI enter)

Typing angle

7°

Front height

18.7mm

Weight

3kg

PCB

1.6mm Non Flex-Cuts Wired PCB

Plate

FR4

Kit Contents

- Tonish TKL case

- FR4 gold-plated plate

- Main PCB (1.6mm) + FPC cable

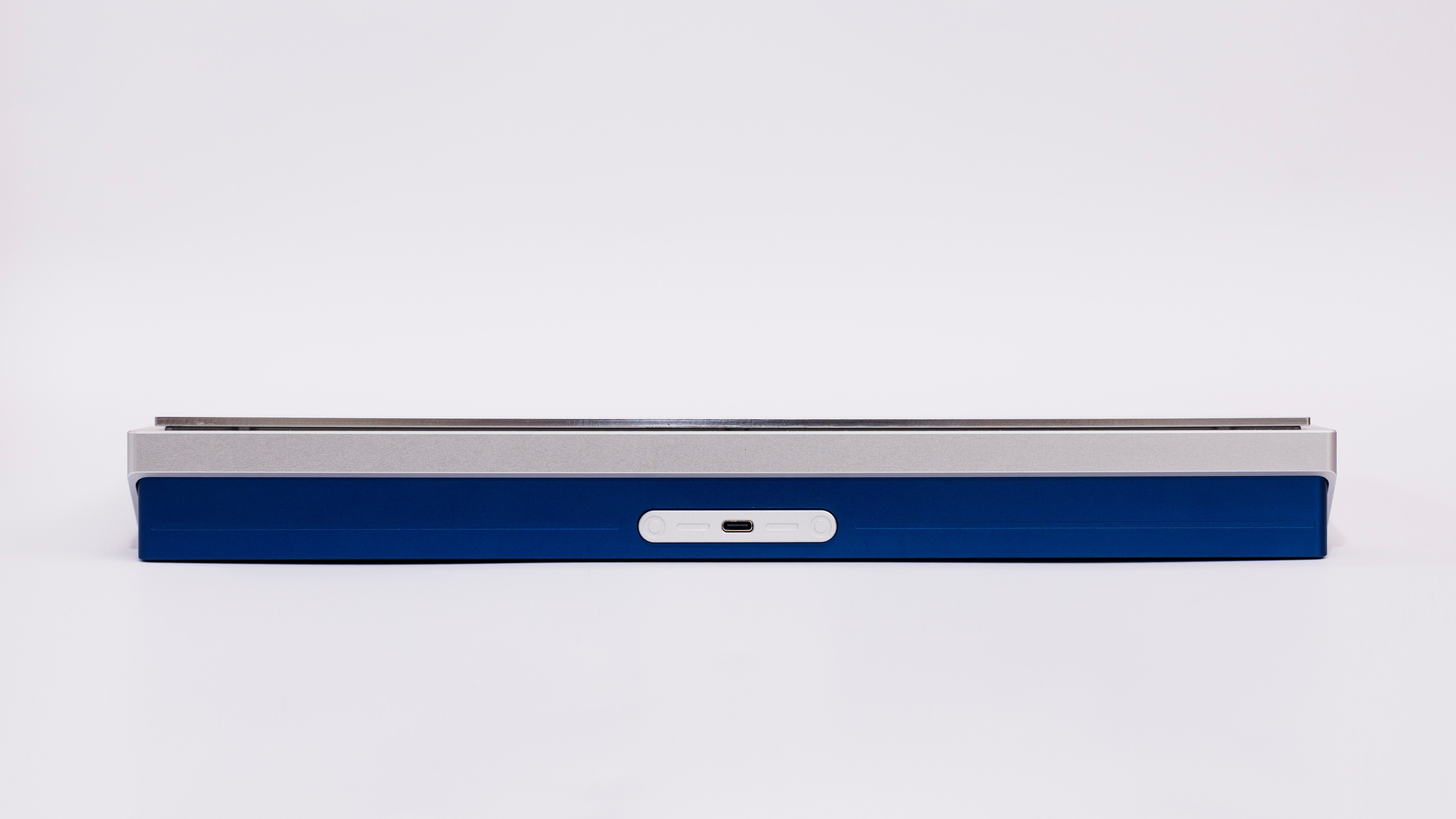

- Type-C daughterboard & lightbar PCB

- Full dampening kit (bottom foam, mid-foam, switch pads, Force Break strips)

- Silicone gaskets & screws

- Keyboard Case
