[In-Stock] Eyelash Corne Split Keyboard

Special Notice
This product features key remapping via GitAction. While the process may require a few steps, it is straightforward to execute. The case adopts a tilted design with a 5° angle and a large-capacity battery. Essentially, an angled battery compartment is added to the flat-bottom shell, making the screen side higher and the opposite side lower. The new version introduces a knob on the left, a joystick on the right, and upgrades the screen to the ultra-low-power nice!view LCD, which slightly increases the price. The kit includes two fully assembled PCBs, a case, battery, knob, joystick, and one nice!view screen. Switches, keycaps, and cables are not included. The GitHub link for the new Corne firmware can be requested directly from the shop owner.

Key Features

1. Firmware Support: Wireless solutions only (such as ZMK). QMK is not supported. Discussion group: 945900883.

2. Differences from Previous Versions:

   • Battery connector upgraded to PH2.0 (previous version required soldering).

   • Improved signal stability with onboard MCU antenna.

   • Left side now includes a multifunctional knob; right side includes a multifunctional joystick.

   • Added nice!view screen with power consumption as low as 20ua.

   • Reset button position optimized for easier access.

   • Screen cover upgraded to tempered glass for durability.

3. Battery Life: Left hand current consumption is about 1.2ma during typing, 900ua when idle, and 200ua in sleep mode. The right hand consumes about 60% of the left. With a 1500mAh battery, usage time reaches approx. 1250 hours, lasting from half a year up to one year.

4. RGB Backlight: RGB lighting consumes more power. In breathing mode, current drops from 300ma to 45ma, and the backlight will turn off automatically when idle, allowing much longer battery life.

5. Firmware Optimization: Hardware is fully pre-assembled, and the firmware libraries are pre-configured. Users only need to modify the keymap. For special needs, support is available via the discussion group or directly through Taobao.

6. Case Design: 5° tilt angle allows for a 1500mAh battery compartment.

7. Resource Links:

   • New Corne GitHub: https://github.com/a741725193/zmk-new_corne

   • Older version without screen: https://github.com/a741725193/zmk-corne_no_display

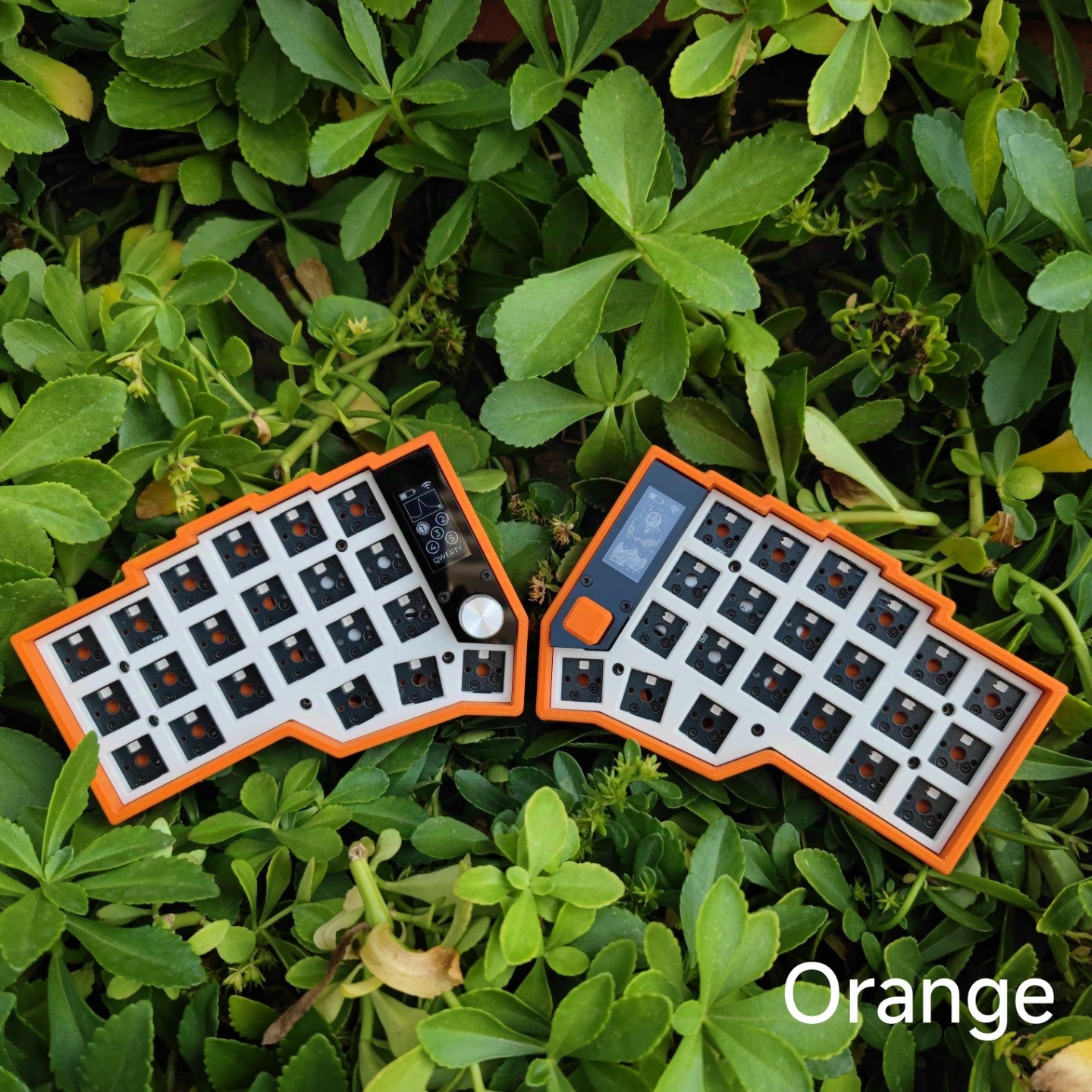

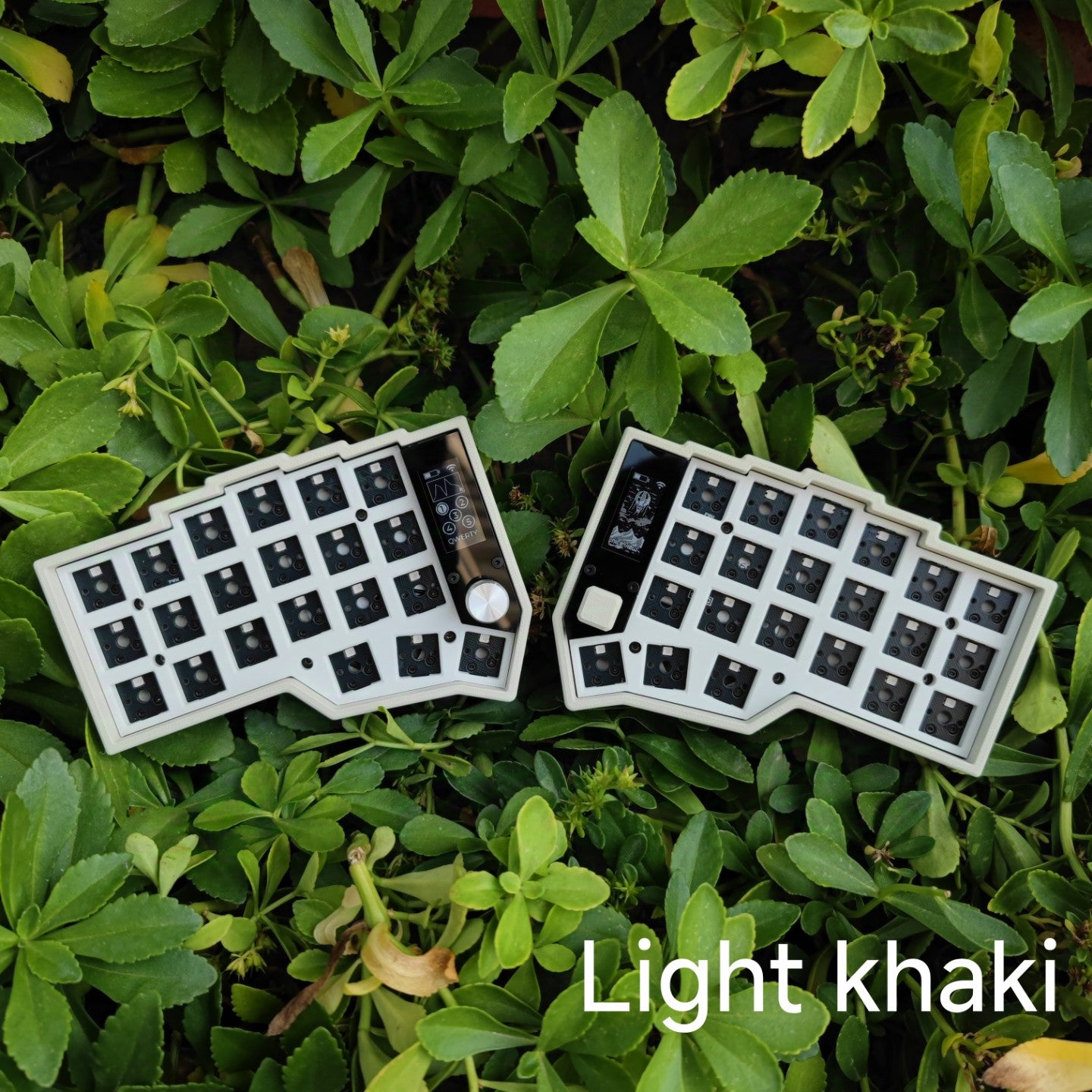

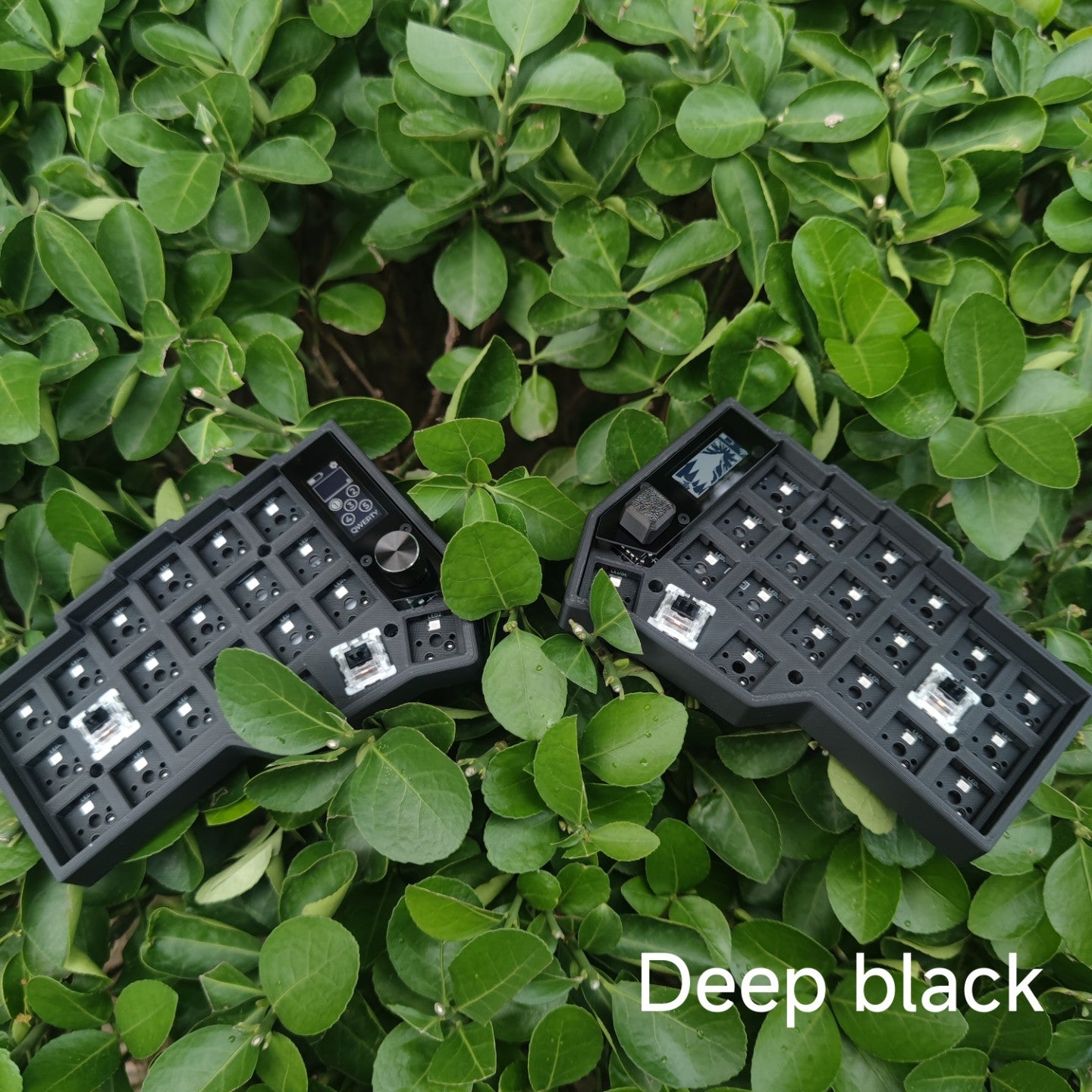

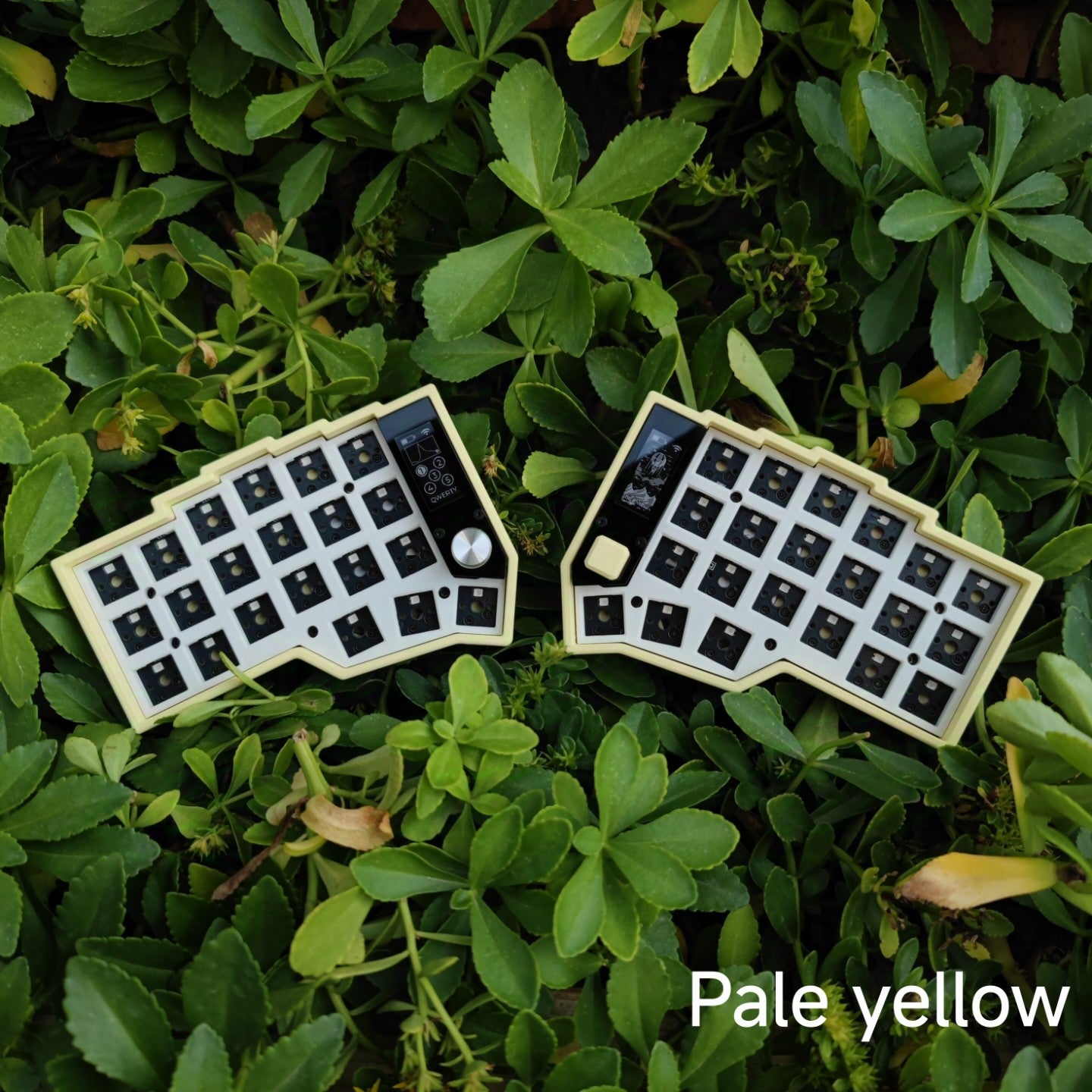

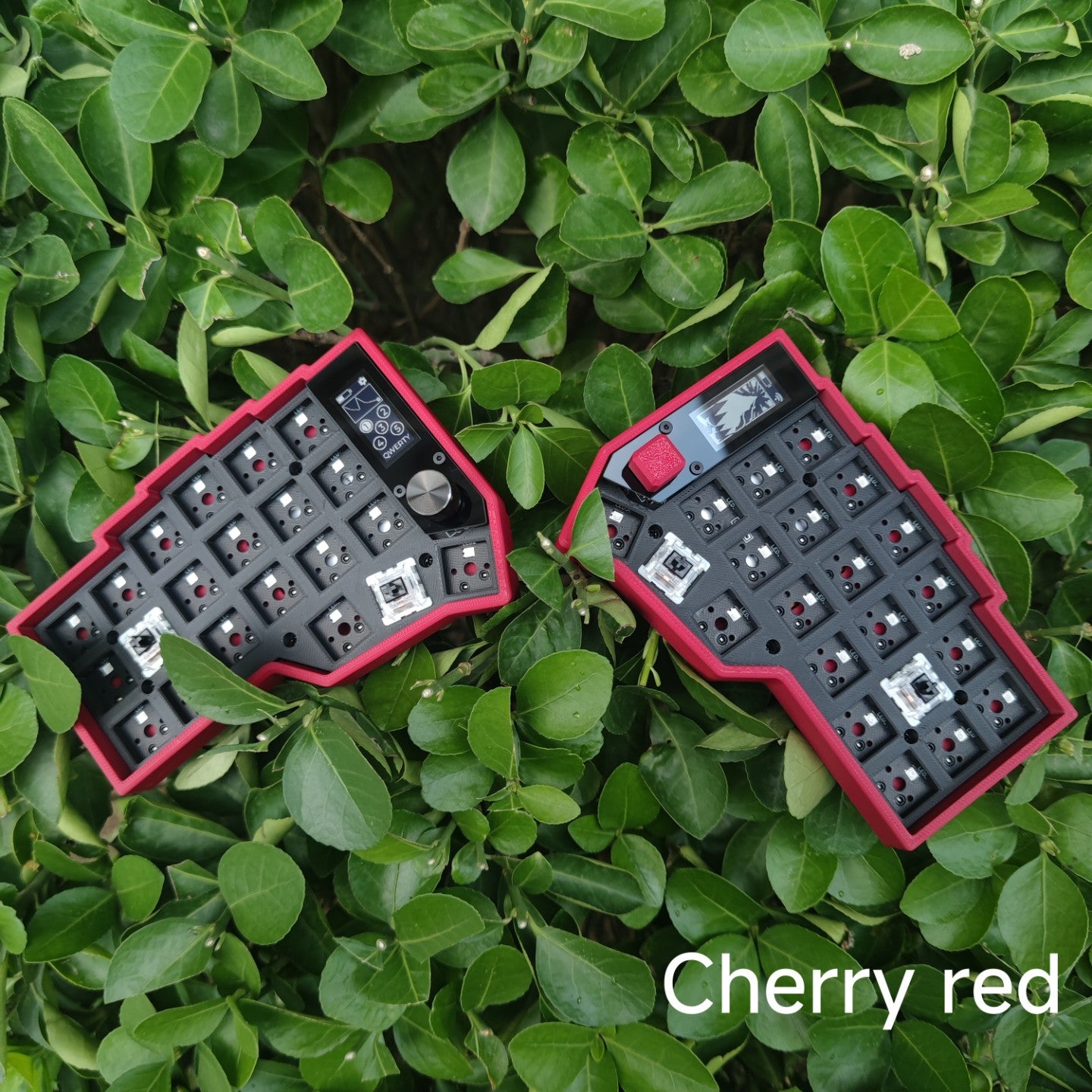

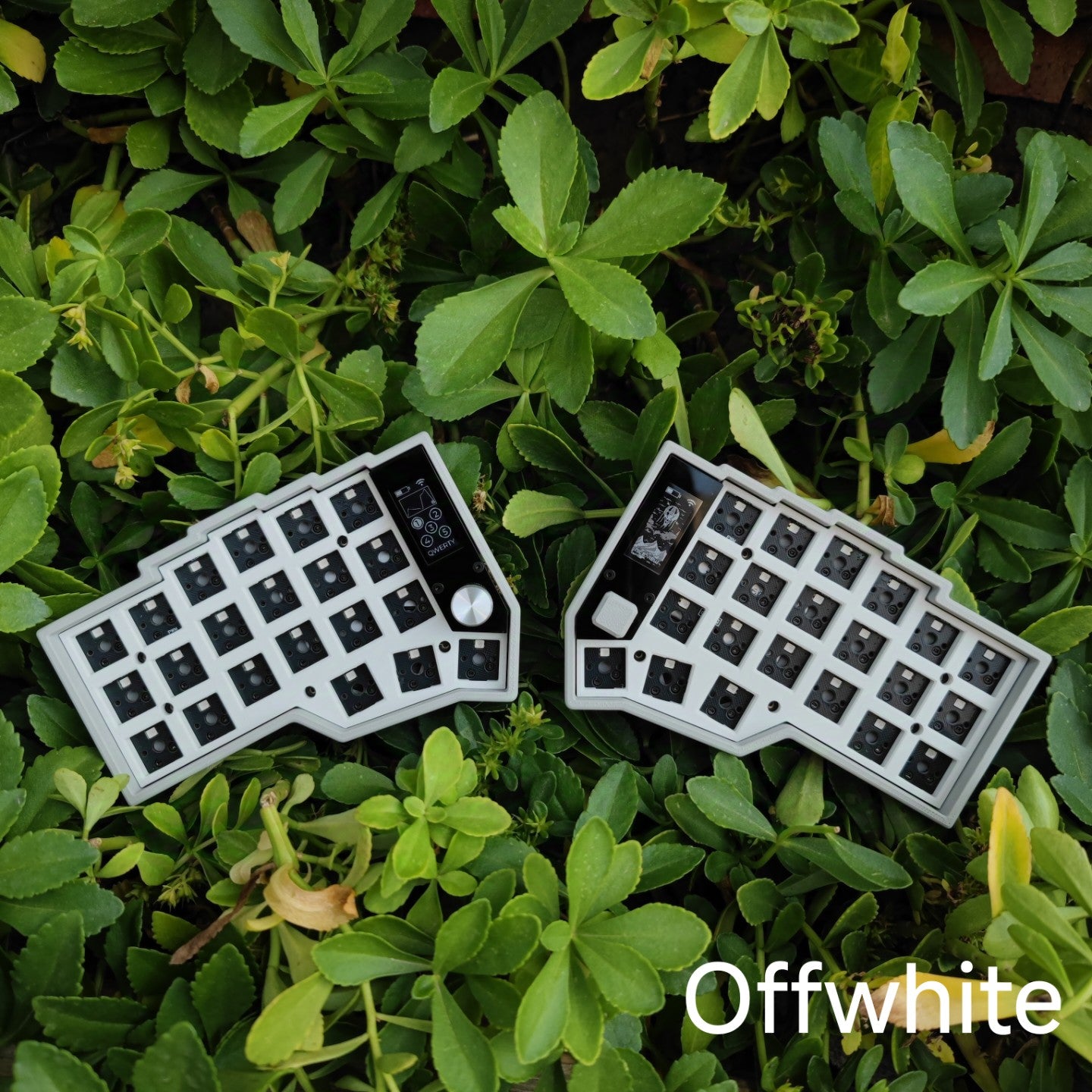

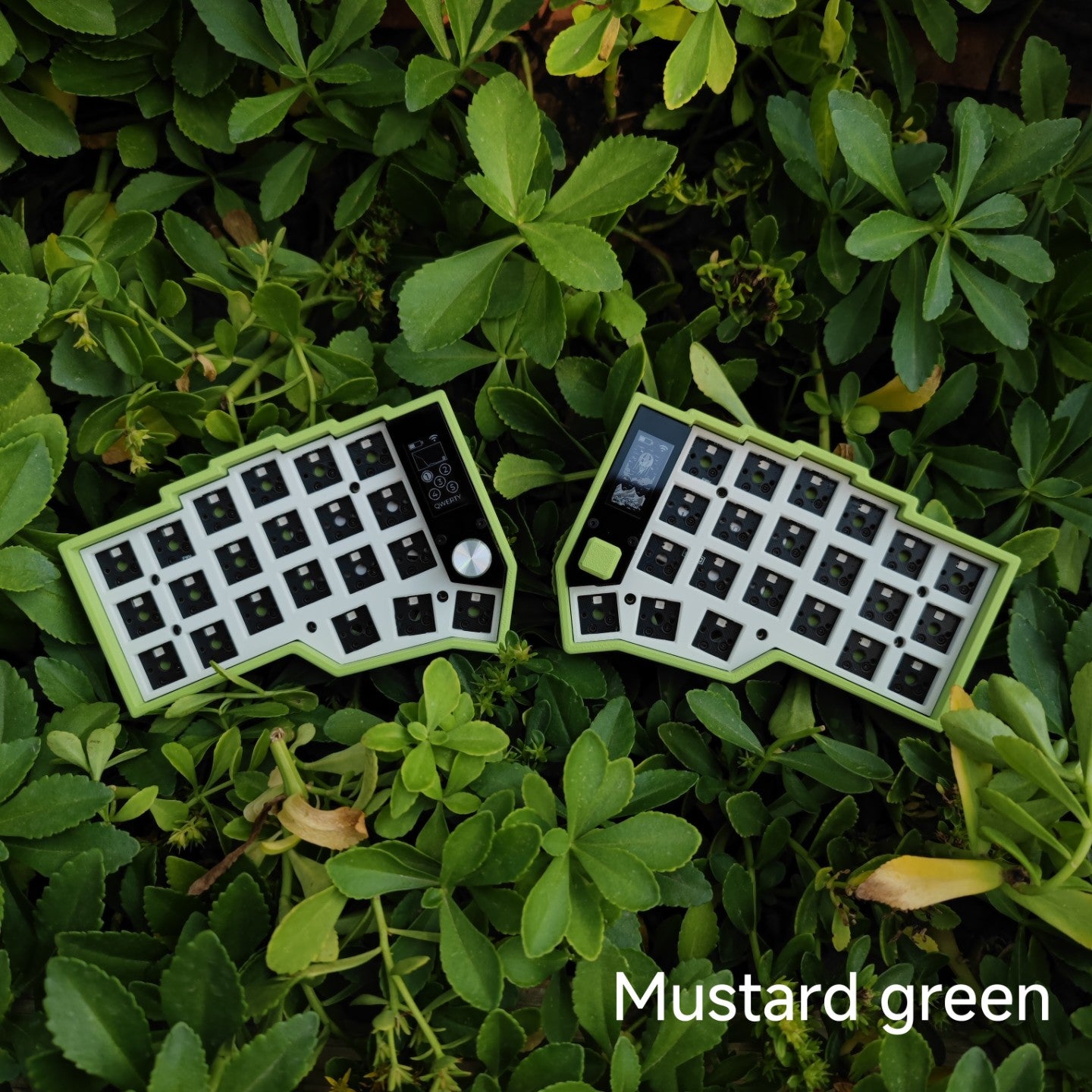

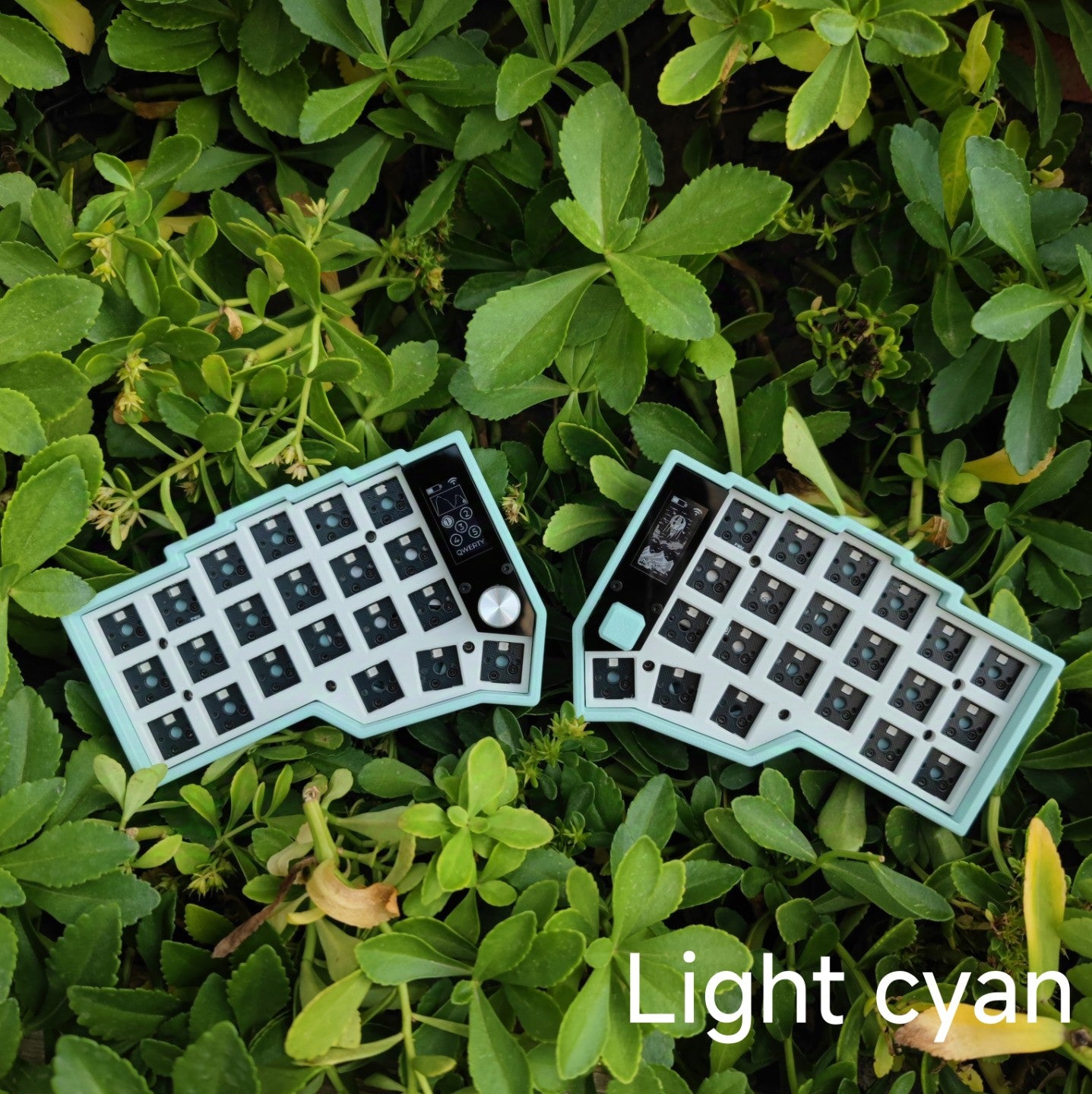

8. Case Colors: Available in black, cream white, retro white, light purple, light blue, light green, cherry red, pale yellow, orange, purple, gray, mustard green, and more. If no preference is given, colors will be shipped randomly. For the best print quality, we recommend "Soybean White" (off-white) and light blue.

9. Screen Display Information: Battery level, Bluetooth channel status, keyboard state, active layer, typing speed, and left/right connection status.
