⚠️ This is a keyboard kit only – switches, keycaps, and USB-C cable are not included.

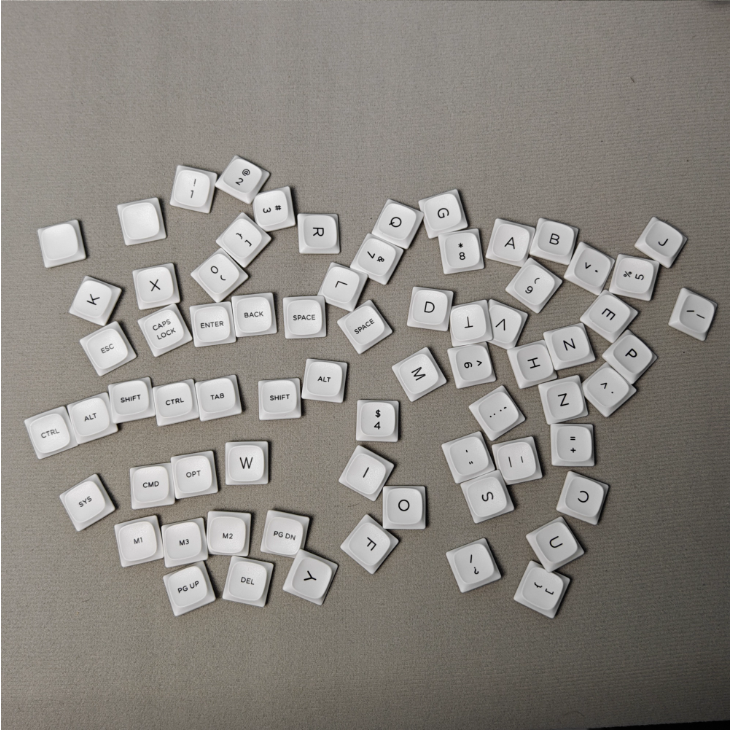

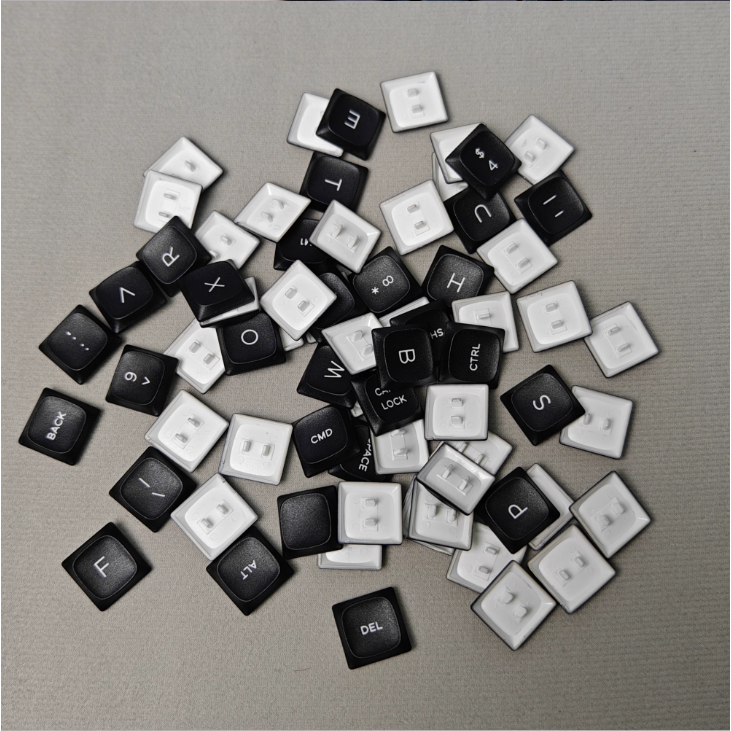

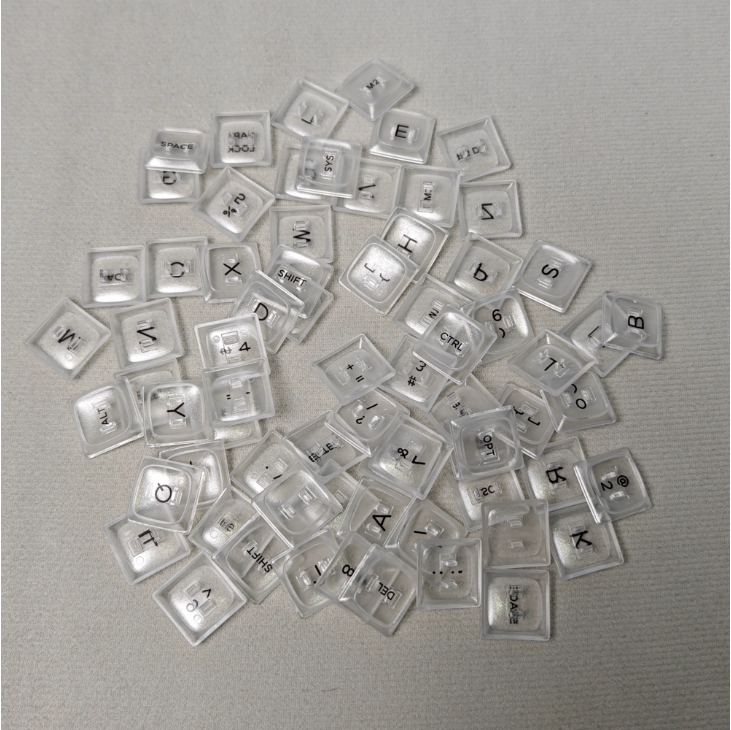

Custom keycaps with legends will be available in late February, offered in black, white, and transparent.

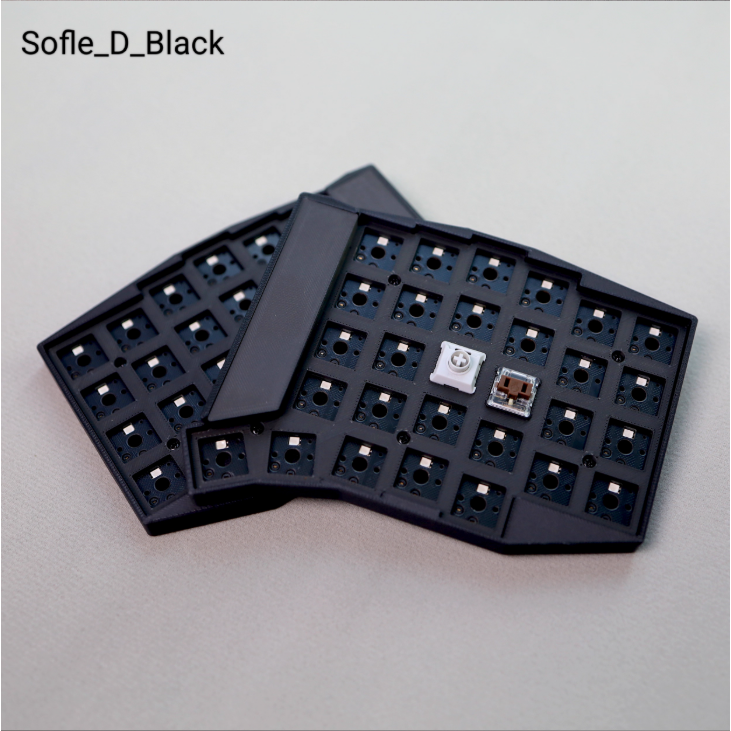

The kit runs on ZMK firmware, identical to our MX Corne version. It supports both Bluetooth and USB dual-mode connection, with multi-device switching. A 2.4G receiver will also be available (expected late February). Case options include black PLA carbon fiber and white PLA matte.
Features
-
Screen: Equipped with nice!view ultra-low power LCD, showing keyboard status, Bluetooth channels, connection history, active layer, battery level, and typing speed.
-

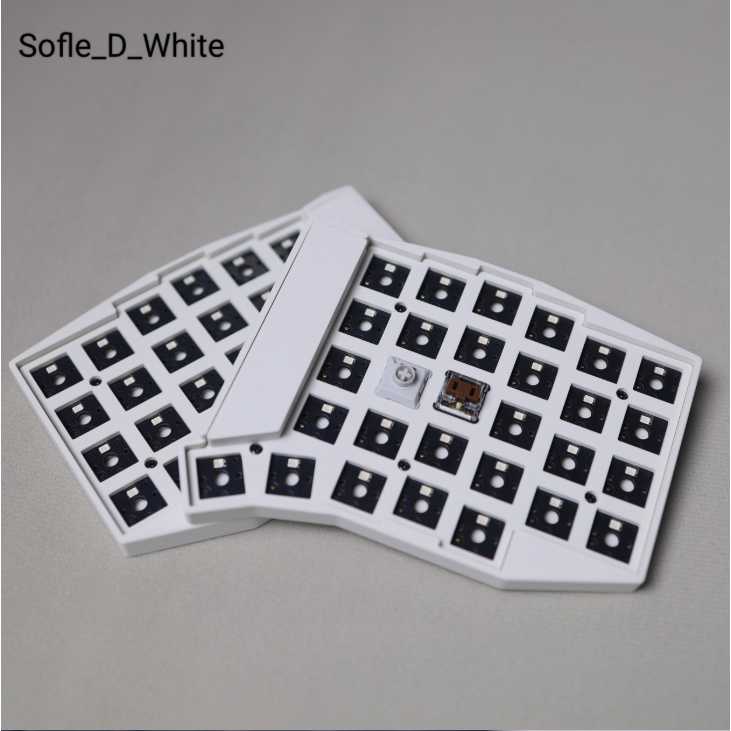

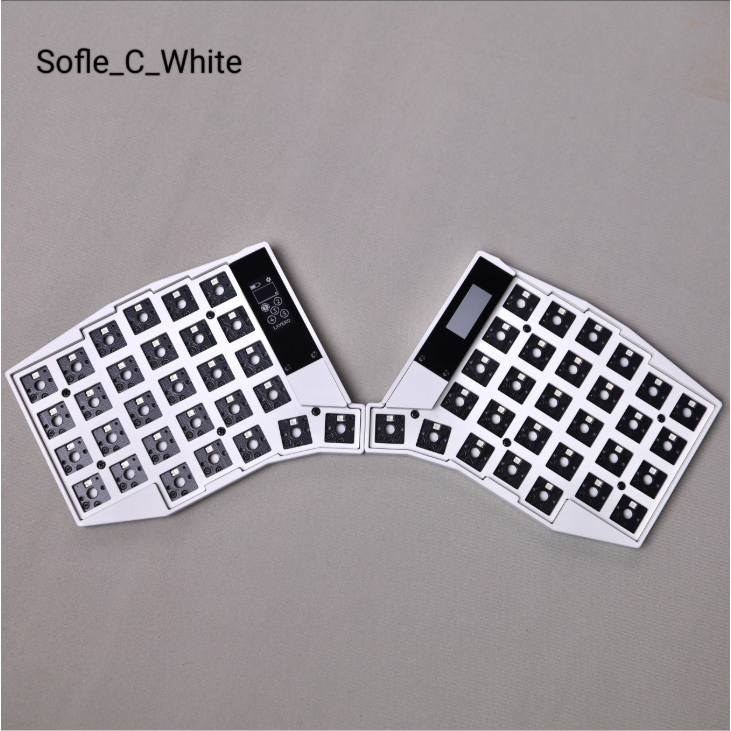

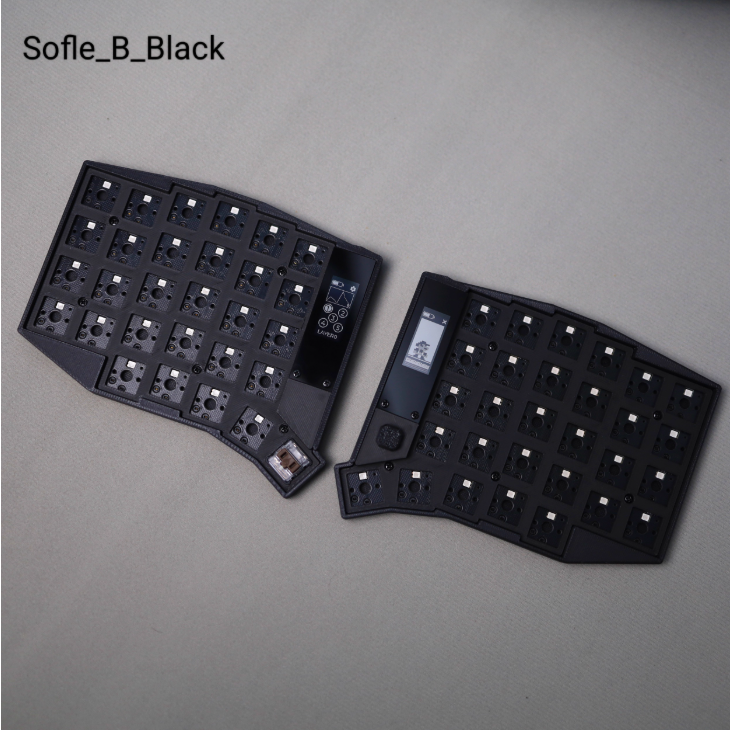

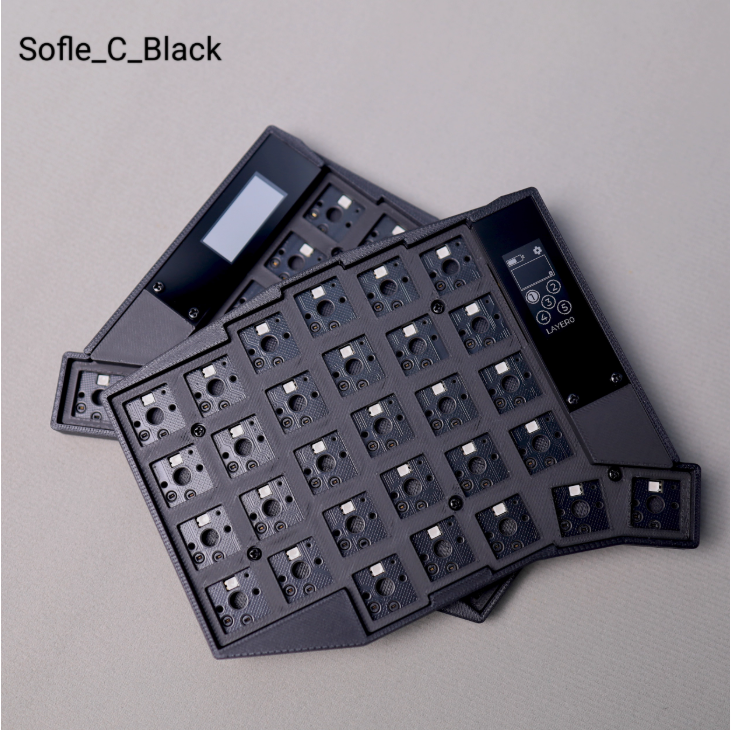

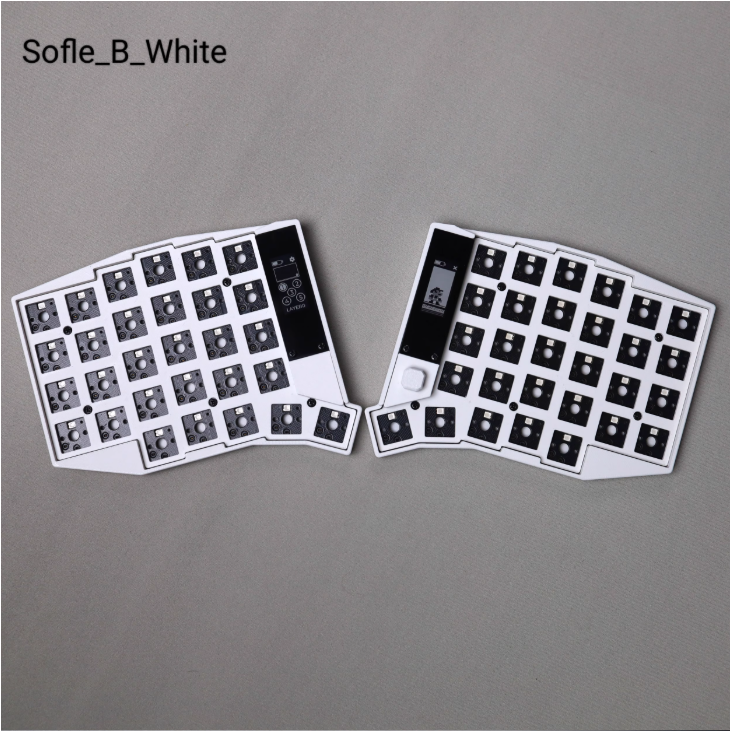

Variants:
-
RGB Backlight: RGB lighting included, but power hungry. Best when used while plugged in.
-
Firmware Support: Pre-configured with ZMK Studio for local key remapping; advanced customization available via GitHub (shared repo with MX Sofle).
-
Battery: Built-in 300mAh battery, ~250h theoretical runtime, ~30 days practical use (with auto sleep). USB charging supported, with overcharge protection.
-
Switch Support: Compatible with Kailh choc v1 and choc v2 (1353).
-
Hot-Swap: Uses Kailh 1350 hot-swap sockets for easy switch swapping.
-

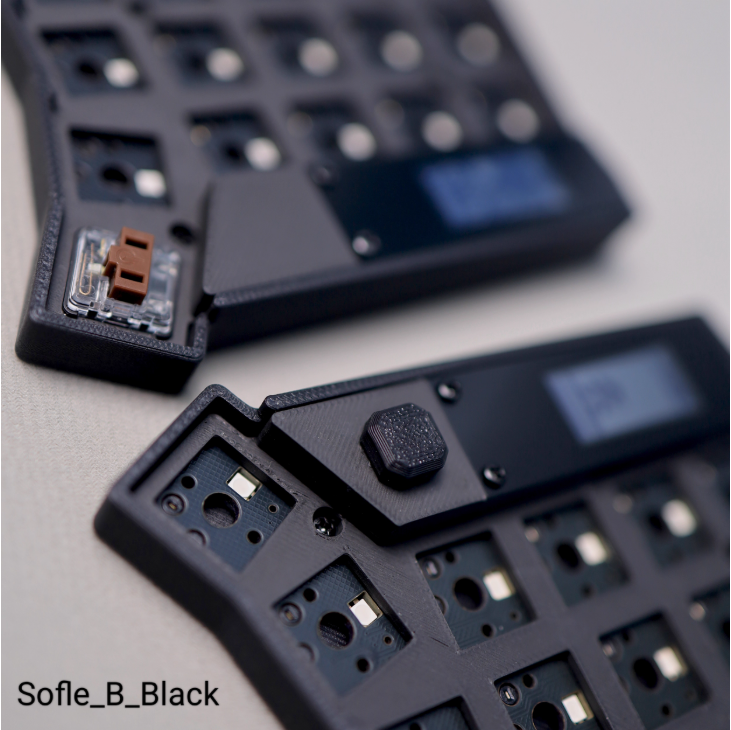

Knob & Joystick: Knob default = volume control; Joystick = arrow keys on Layer0, mouse pointer control on Layer1/2 (for emergency use, not a full replacement).
-
Case & Model: Case model files are provided for DIY 3D printing.
-
Ultra-thin Design: Only 1mm thickness below the sockets, with embedded feet adding just +0.4mm height. Default 2mm feet included, customizable with other heights.
-
Additional Details:
-
Reset switch: Located in the back circular hole, double-tap to enter BL mode.
-
Power switch: Top-side toggle, outward position = ON.
-
For Thinness Enthusiasts: Choose the no-knob, no-joystick version for maximum slimness.
