Compatible with HHKB Pro2/Pro3, ai03, and GH60 Cases
Product Description

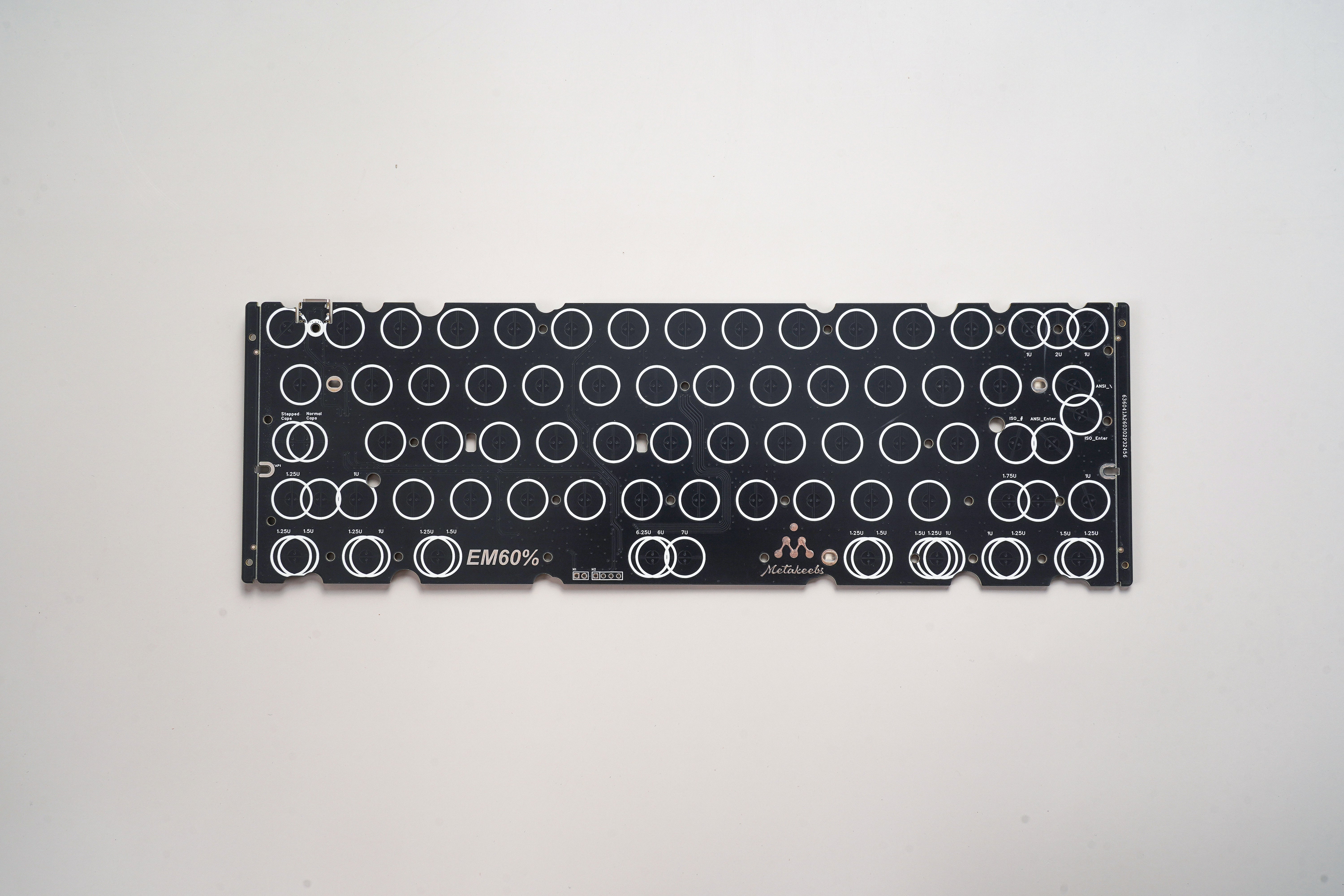

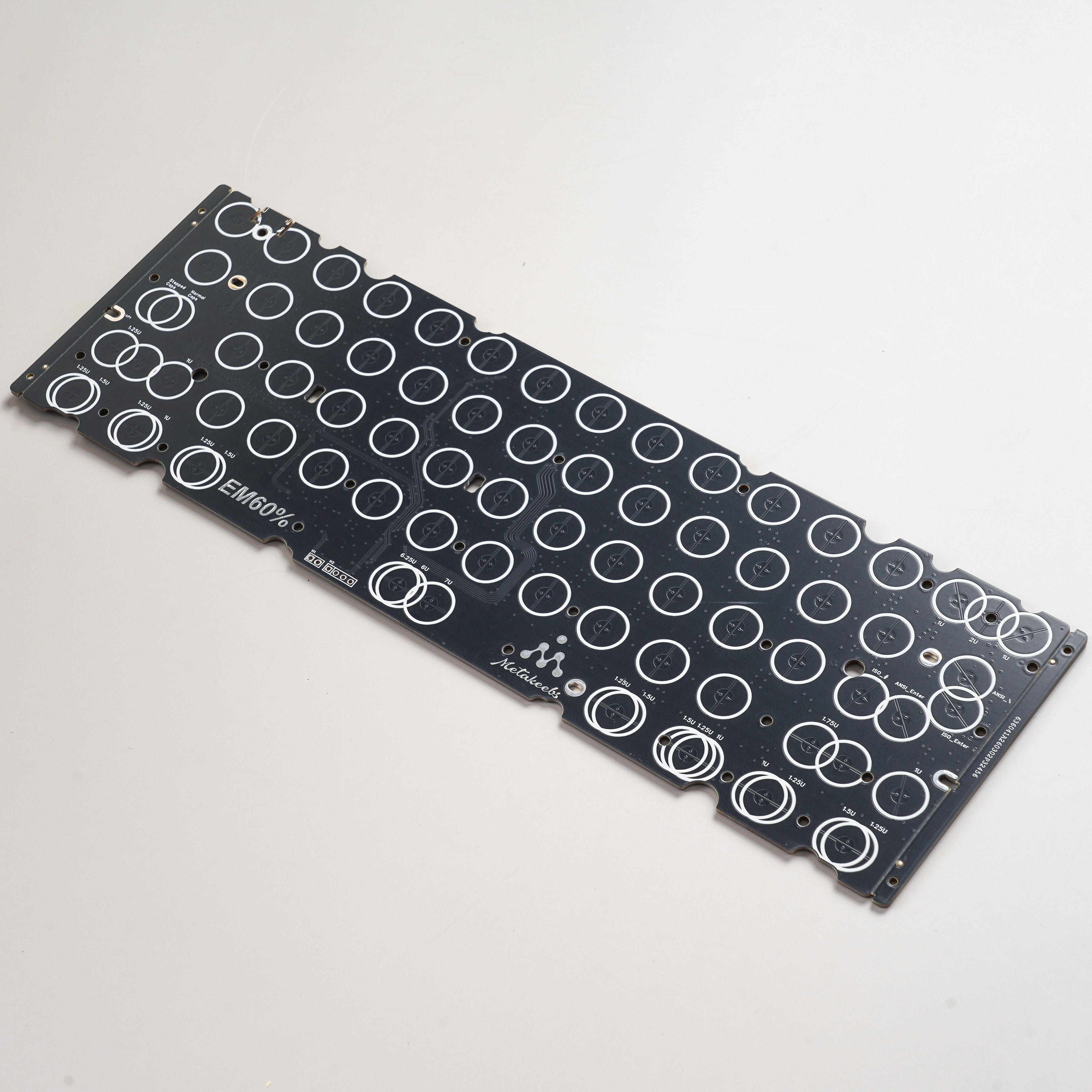

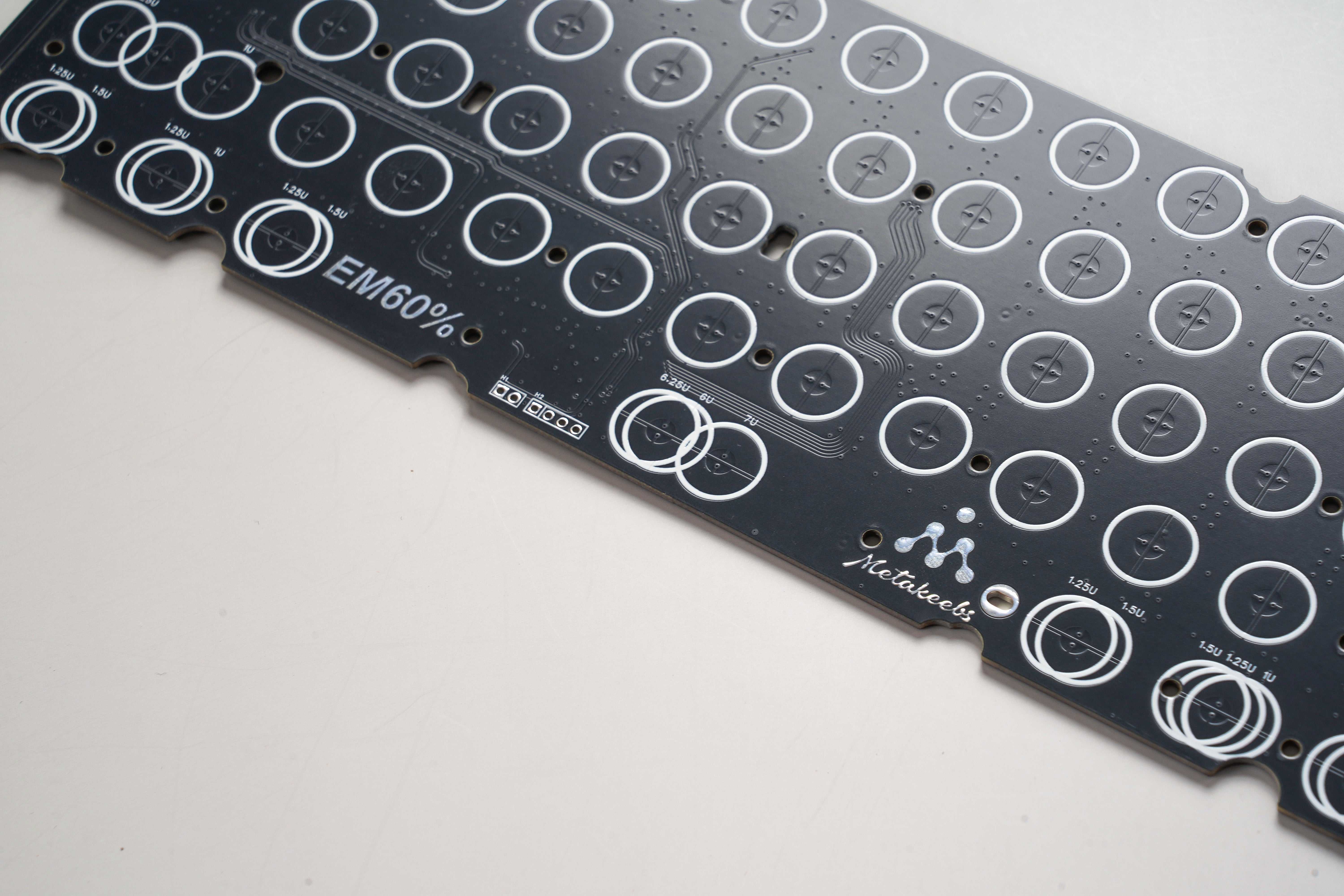

The Metakeebs EM60 PCB is a powerful and flexible solution for modern EC builds—whether you're retrofitting a HHKB Pro2, dropping into an ai03-style case, or experimenting with MX-style builds in GH60 layouts.
This PCB comes with one daughterboard (DB) of your choice, and you can buy other daughterboards to pair with it as well. These support direct compatibility with:
- OEM HHKB Pro3 DB
- OEM HHKB Pro 3 Mini DB
- OEM HHKB Pro 2 (with or without hub)
- GH60 cases via ai03 DB—perfect for MX-to-EC conversions
You can also order all daughterboards in one package with the PCB for maximum compatibility.
Aimed at enthusiasts who want freedom, performance, and VIA configurability in one package.
Introduction for V2 PCB
The EM60 V1 PCB was a significant milestone in the custom EC sector. It served as the first PCB capable of simultaneous compatibility with HHKB Classic/Hybrid and Pro 2 cases, while also providing full support for standard GH60 tray-mount cases and expansion for up to five daughterboards.
Driven by market feedback and a commitment to absolute compatibility, we are formally launching the comprehensively optimized EM60 V2. This version is meticulously engineered to eliminate all potential assembly impediments and enhance overall performance.
Core Upgrades and Innovative Features
Connector Port Upgrade: JST to Molex Ultra-Slim Connection
The V1's JST port, with a thickness of 4.5mm, frequently caused interference with certain cases, impacting the user experience. The V2 main PCB transitions to the ultra-thin Molex connector, which completely resolves the clearance issues encountered with V1 in various housings.
To ensure seamless compatibility with V1 daughterboards and most existing DBs, the accompanying cable has been customized to a Molex-to-JST format.
Extreme RGB Backlighting Optimization

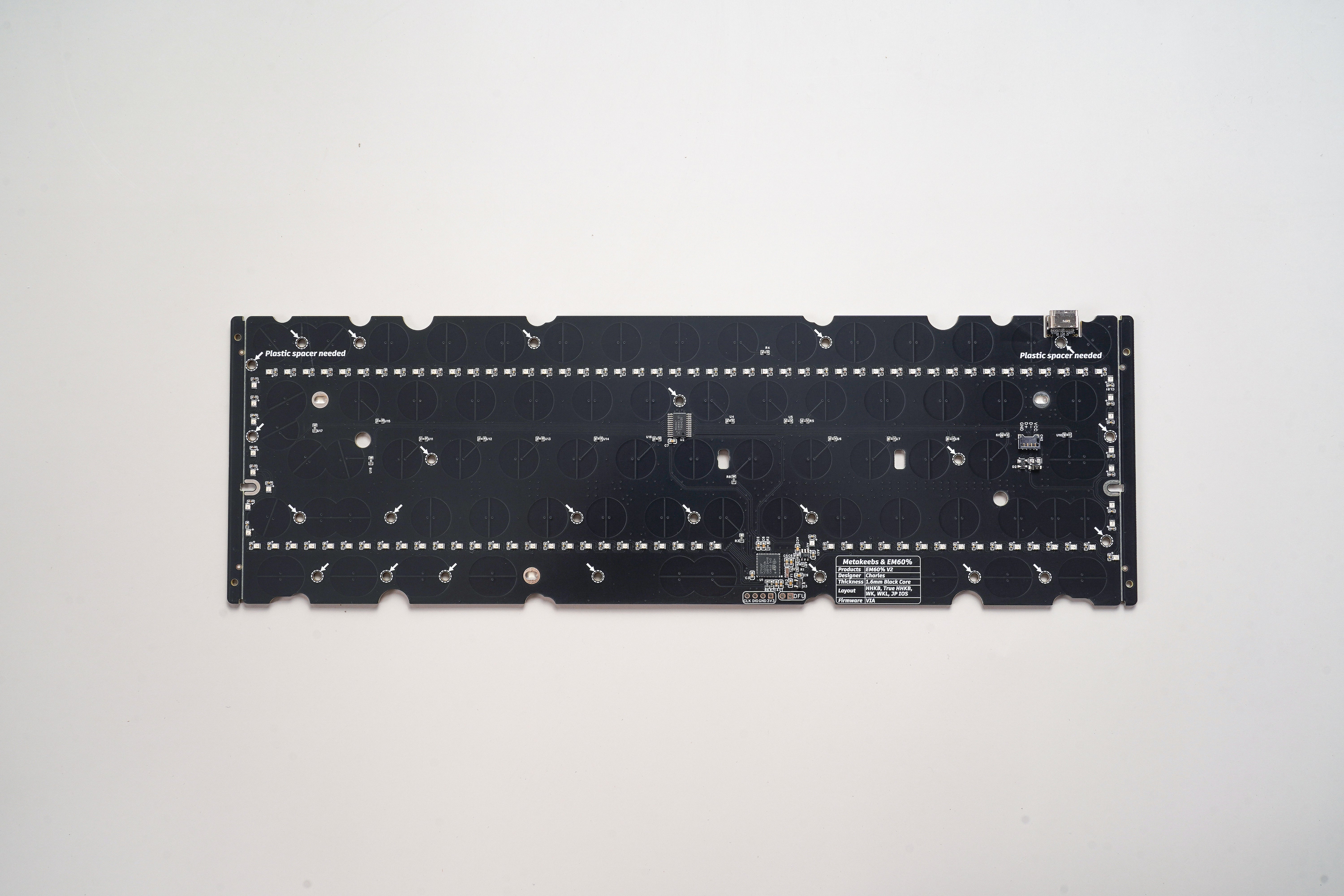

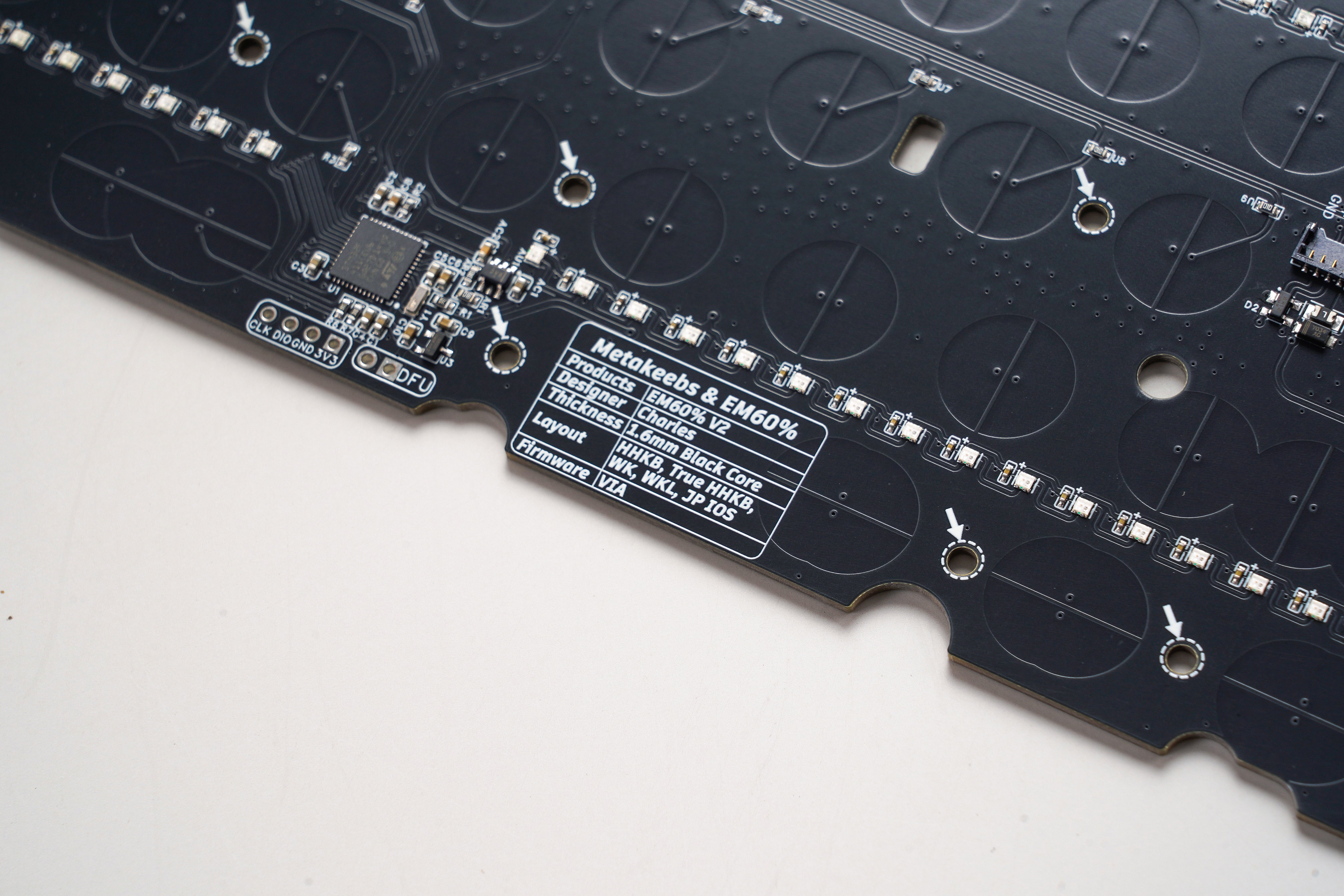

V2 upgrades from larger LEDs to ultra-thin LEDs and drastically increases the count to over 100pcs. This optimization strategy—reducing size to prevent interference while increasing count to ensure brightness—significantly improves both the overall brightness and the uniformity of the backlighting.
Type-C Interface Snappable Design

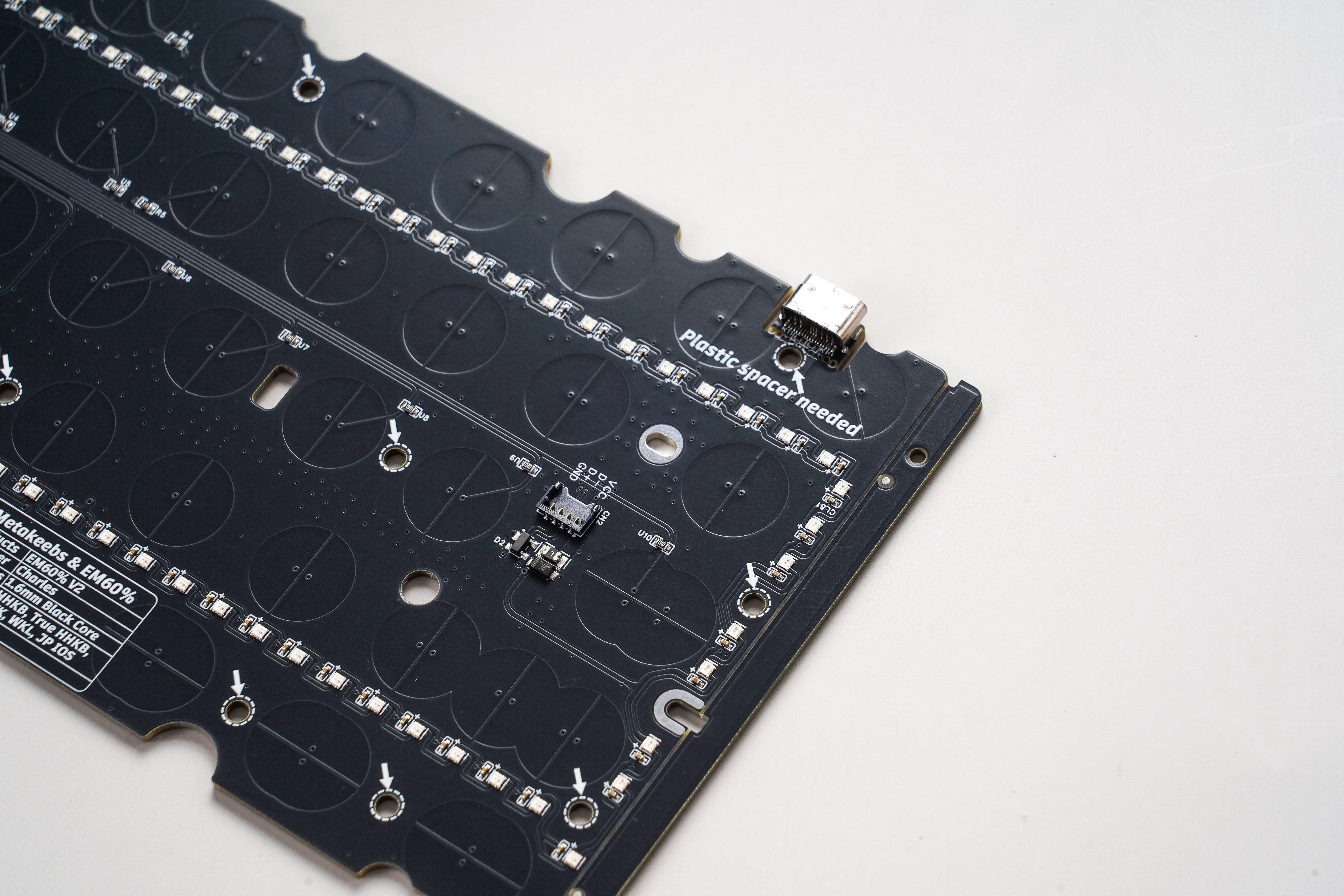

To maximize versatility, V2 adopts a break-away Type-C port design. Users can choose to retain or remove the connector based on their specific needs, enabling a seamless transition between standard GH60 cases and custom EC enclosures.
Structural Stability

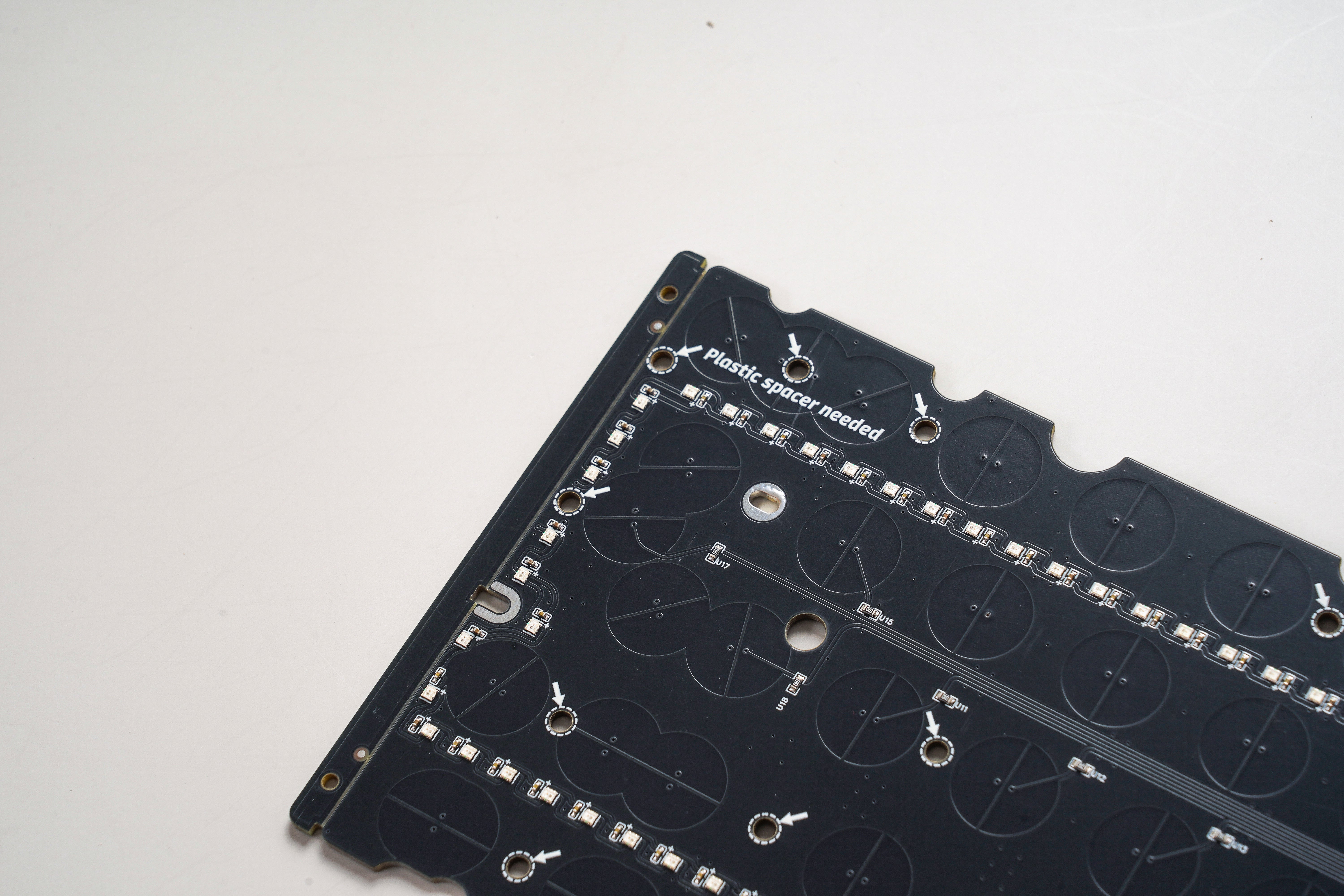

V2 incorporates the addition of multiple screw points. This upgrade ensures better mounting security and long-term stability, particularly for non-standard layouts like WKL.
Pricing Commitment
he V2 pricing remains identical to the V1. For users requiring only the main PCB, the pricing will be even more competitive!
EM60 V2 is our latest expression of ultimate compatibility and the pursuit of a perfect user experience.
Key Features
- VIA Compatible
- Calibration Function
- Molex To JST
- Compatible with HHKB Pro2/Pro3, ai03, and GH60 Cases
- Advanced EC Tuning Suite:
- APC (Actuation Point Control)
- Rapid Trigger Mode (RT)
- Calibration & Bootloader Jump
- NKRO & SOCD Cleaning
- RGB
- One-Shot, Tap-Hold & Dynamic Keystroke (e.g. for counter-strafe responsiveness)
- Wired-Only (no Bluetooth module support at present)
- Supports MX-to-EC builds via GH60 mounting
- Ideal for domes like Deskeys, BKE, and Metakeebs’ own line
What’s Included
- 1x Metakeebs Universal EC PCB
- 1x Daughterboard (default selection)
- Additional DBs for alternate mount styles available separately
